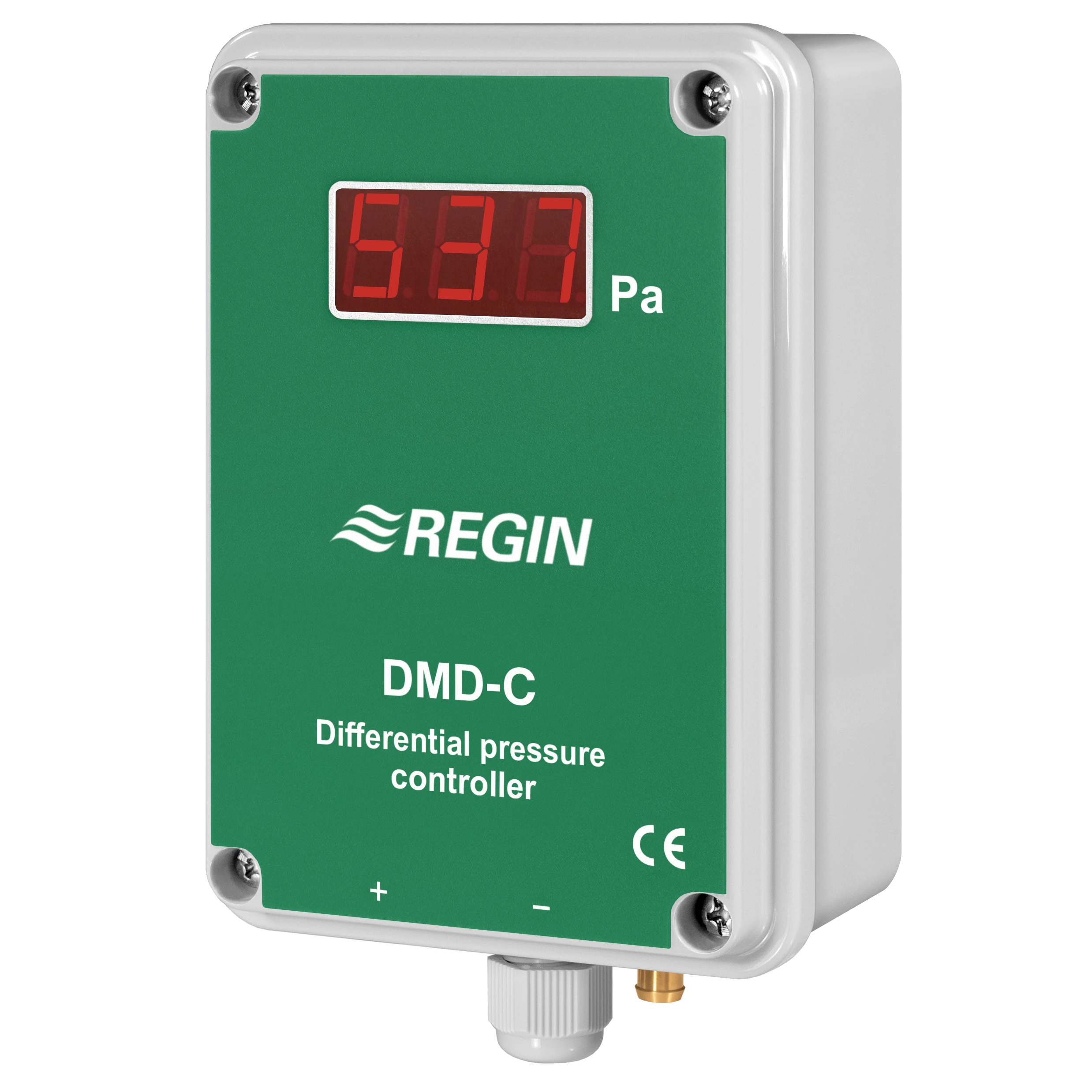

DMD / DMD-C

Price range: €431,58 through €473,68 (€522,21 incl. VAT)

On backorder, please contact us for the expected delivery date.

Differential pressure transmitter

Product information and datasheets →

Why buy from Sensors.nl:

Excellent rating: 96.42% had a good to very good experience

Personal customer service and advice

Extra discount possible for large quantities: Contact us

Specifications

Specifications for DMD
Power Supply	24VAC/DC (21...27 V AC 50/60Hz / 21...27 V DC), 5.0 VA
Dimensions, external (WxHxD)	89x129x58 mm
Display	Yes
Display type	LED, three digits
Analogue output load impedance 0...10v	> 2 kΩ
Analogue output load impedance 4...20mA	< 500 Ω
Pressure, range sensor	0...999 Pa
Accuracy, pressure sensor 1	±1 % full scale at 20 °C %
Damping (electronic)	0...20 s

Specifications for Differential pressure transmitter with display
Protection class	IP54
Ambient humidity (non-condensing)	0...90 % RH
Storage temperature	-40...50 °C
Mounting	Wall
Weight, incl. packaging	0.39 kg
Media	Air and non-corrosive gases
Analog outputs type (AO)	0...10 V DC / 4...20 mA
Pressure, range sensor	0...999 Pa
Cable gland	M16x1.5
Terminal type	Screw Terminal
Terminal wire size	1.5 mm²
Material, housing	Polycarbonate (PC)
Material sensor	Silicone rubber
