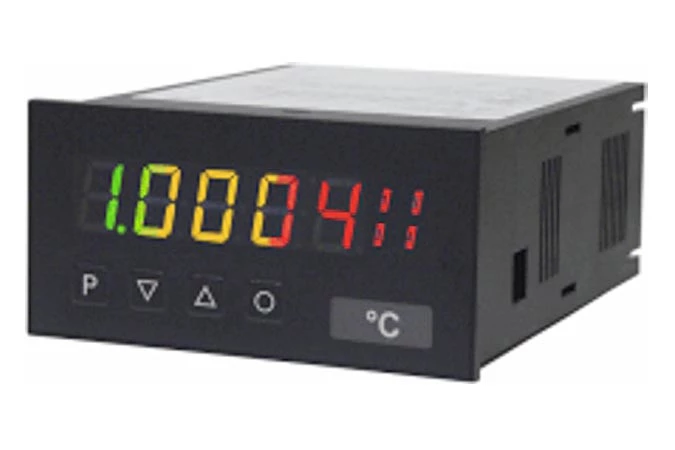

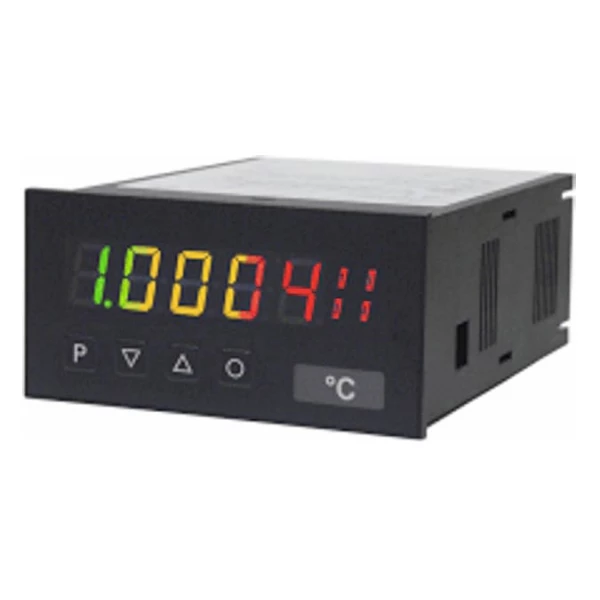

Digital indicator DC current/high DC voltage - standard signal, height characters 14 mm M3-H tricolour

Digital indicator DC current/high DC voltage - standard signal, height characters 14 mm M3-H tricolour | 96 x 48

96.42% Has a good to very good experience with SENSORS.NL

Personalized customer service

Spacious assortment with a wide range of top brands

Need an additional discount for quantities? Please contact us

Display: 5 digits (-19999 ... 99999)
Color: red, green, orange switchable
Operation: front panel keypad, IP65
Input: 0 ... 1 ADC, 0 ... 50 VDC, 0 ... 300 VDC, 0 ... 600 VDC
Switching output: 2/4 relays (option), 250 VAC / 5 AAC, 30 VDC / 5 ADC Option: 8 PhotoMos outputs
Analog output: 1x, 2x 0/4 ... 20 mA, 0 ... 10 V incl. digital input
Interface: RS232 / RS485 (optional)
Power supply: 100 ... 240 VAC
Digital input
Other: linearization, min/max, tare, software tool, volume measurement
