Datenlogger DL-DYDAQLOG

On backorder, please contact us for the expected delivery date.

Technical Characteristics

Sensor input: 16 x analog (differential) ± 20 mA / 0...20 mA, 6 x digital (opto-decoupled)
1TP2Signal: thermocouples type B, E, J, K, N, R, S, T, PT50 / 100 /500 / 1000, resistors, measuring bridges (6-wire technology)
Output: 6 x digital (electronic relays)
Power supply: 10...36 VDC
Operating temperature range: 0...+40 °C
Housing: aluminum, splash-proof
Interfaces: WLAN / LAN
Options: 2G/4G mobile network (sending messages, emails)
Software: for further data processing

Product information and datasheets →

Why buy from Sensors.nl:

Excellent rating: 96.42% had a good to very good experience
Personal customer service and advice
Extra discount possible for large quantities: Contact us

Categories: Datalogging, Export, Müller IE Tags: Datenlogger DL-DYDAQLOG, update2026

Description

Compact and robust aluminum housing - splash-proof all around
16 analog inputs with 24-bit resolution and 10 Hz sampling rate
All analog inputs can be configured independently of each other
Direct connection of thermocouples, PT50/100/500/1000 and strain gauges
Reading data from intelligent sensors or external devices via MQTT
WLAN/LAN interface for configuration and data transfer
Powerful ARM® Quad Core processor with integrated web server

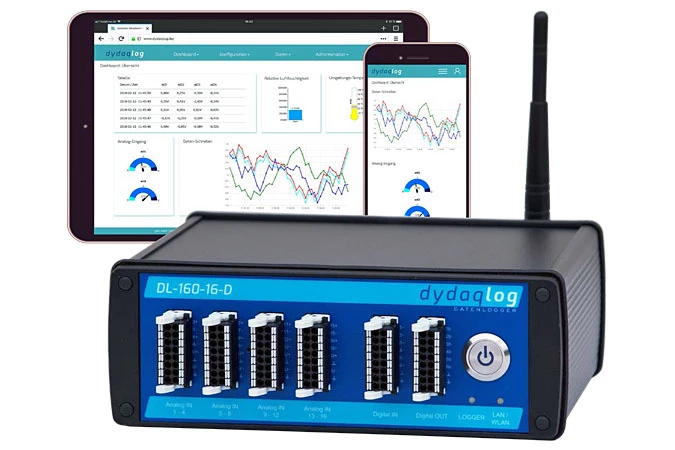

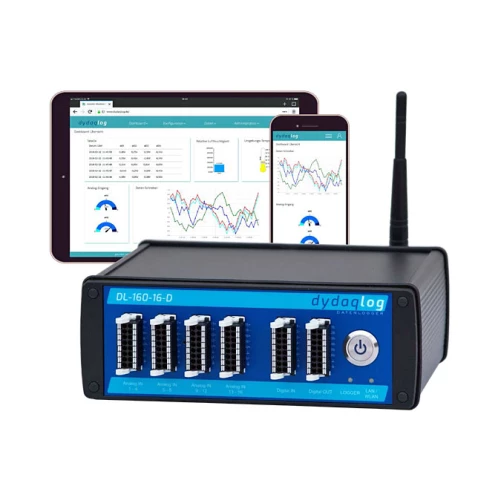

Convenient web interface for configuration and data display
Data storage in data clouds and automatic sending of emails

Rate this product

Downloads

Product Documents

Datasheet
