- High-performance instrument for processing analog/digital signals
- Can be used as I/O expansion for PLC monitoring/control
- Superior performance and a high level of connectivity
- Removable color display as remote control via RS485

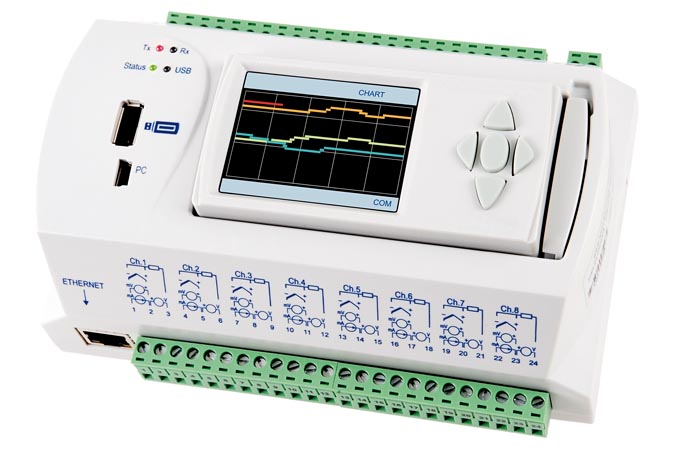

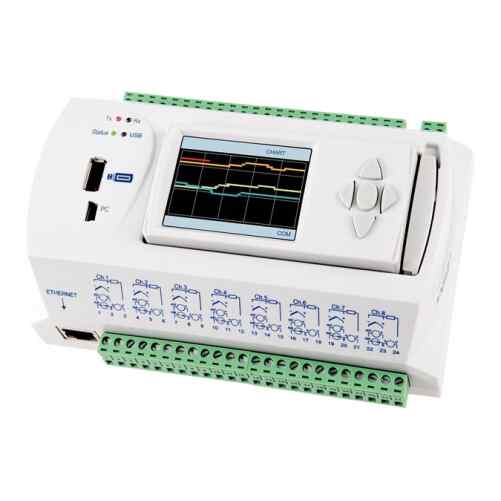

Datalogger DL FieldLogger
Technical Characteristics
- Input / Output: 8 universal analog inputs / 2 relay outputs
- Analog input signals: thermocouples (J, K, T, N, E, R, S and B), 0...5 V, 0...10 V, mV, mA, 4...20 mA, Pt100 and Pt1000
- Channels: 128 virtual channels
- Sampling rate: 1000 measurements/second (24-bit A/D conversion)
- Storage capacity: up to 512,000 values
- Memory expansion: SD or SDHC card
- Display: 2.4″ QVGA screen and 96 x 48 mm format, on-screen menu with current channel value, history overview and status information
- Alarms: 32 configurable alarms (local, remote or virtual channels)
