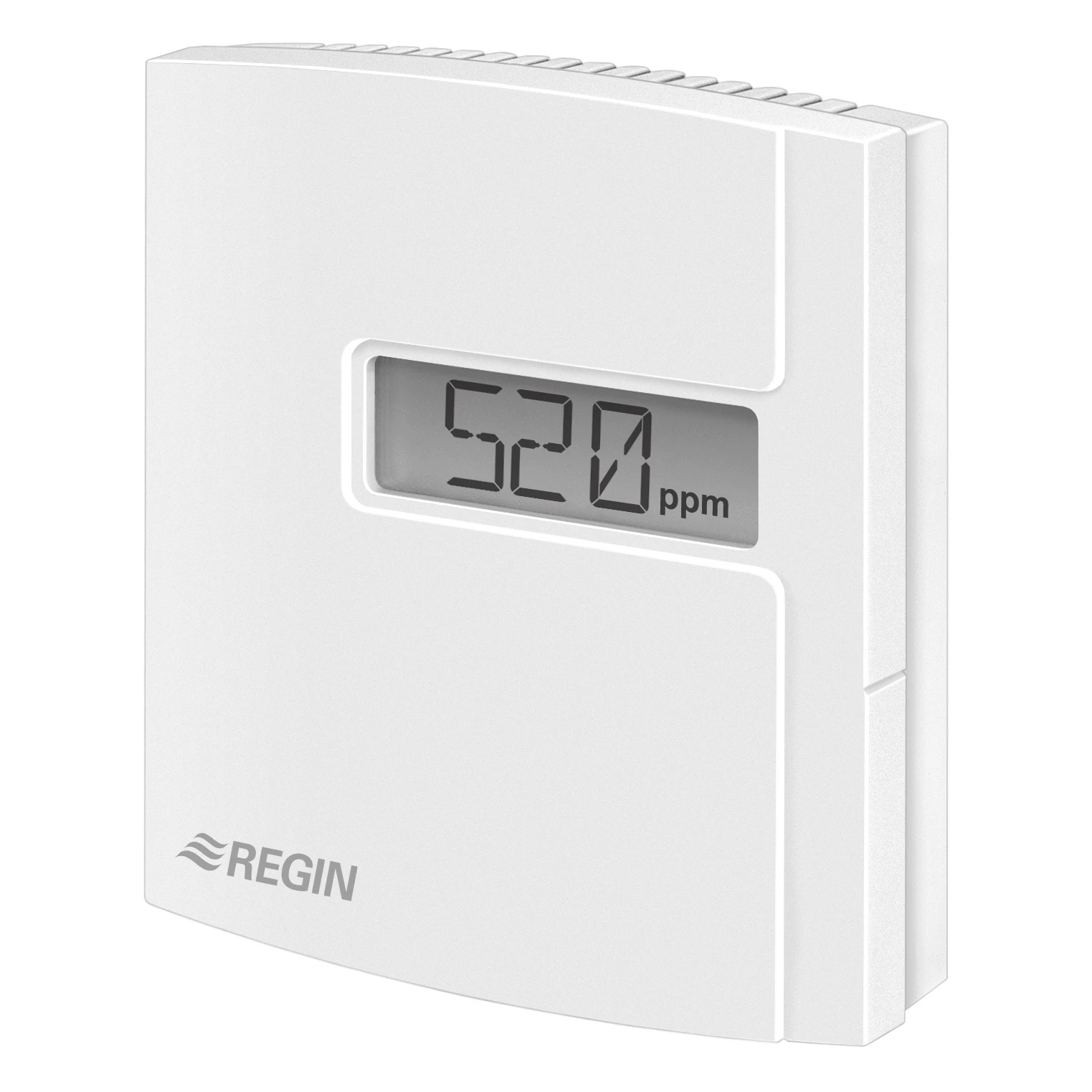

CTHRC-D

CTHRC-D

€621,00 (€751,41 incl. VAT)

CO2 + RH + °C

Checking current stock status? Then contact us or use the live chat.

  • 96.42% Has a good to very good experience with SENSORS.NL
  • Personalized customer service
  • Spacious assortment with a wide range of top brands
  • Need an additional discount for quantities? Please contact us
Add to quote
SKU: CTHRC-D Category: Tag:

Specifications

Specifications for CTHRC-D
Power Supply 24VAC/DC (22...26 V AC 50Hz / 15...35 V DC), 2.5 VA
Dimensions, external (WxHxD) 100x85x30 mm
Display Yes
Supported protocols Modbus
Measuring range, temp 0...50 °C
Output temperature Modbus
Measuring range, humidity 10...90 % RH
Output humidity Modbus
Accuracy, humidity 1 ±3 % RH @ 10...90 % RH
Measuring range, gas in air 0...2000 ppm
Output signal, gas in air Modbus
Accuracy, gas in air < ± (50 ppm + 2 % of the measured value)
Long-term stability Typically 20 ppm / year
Warm-up time < 5 min
Temperature dependence Typically 5 ppm/K
Specifications for CO2, temperature and humidity transmitter for Modbus communication, room mounting
Protection class IP30
Ambient humidity (non-condensing) 10...90 % RH
Storage temperature -25...60 °C
Mounting Room
Accuracy, temperature 1 ±0.2 °K @ 0...50 °C
Terminal type Screw Terminal
Terminal wire size 1.5 mm²
Material, housing Polycarbonate (PC)
Color, housing Signal white RAL 9003
