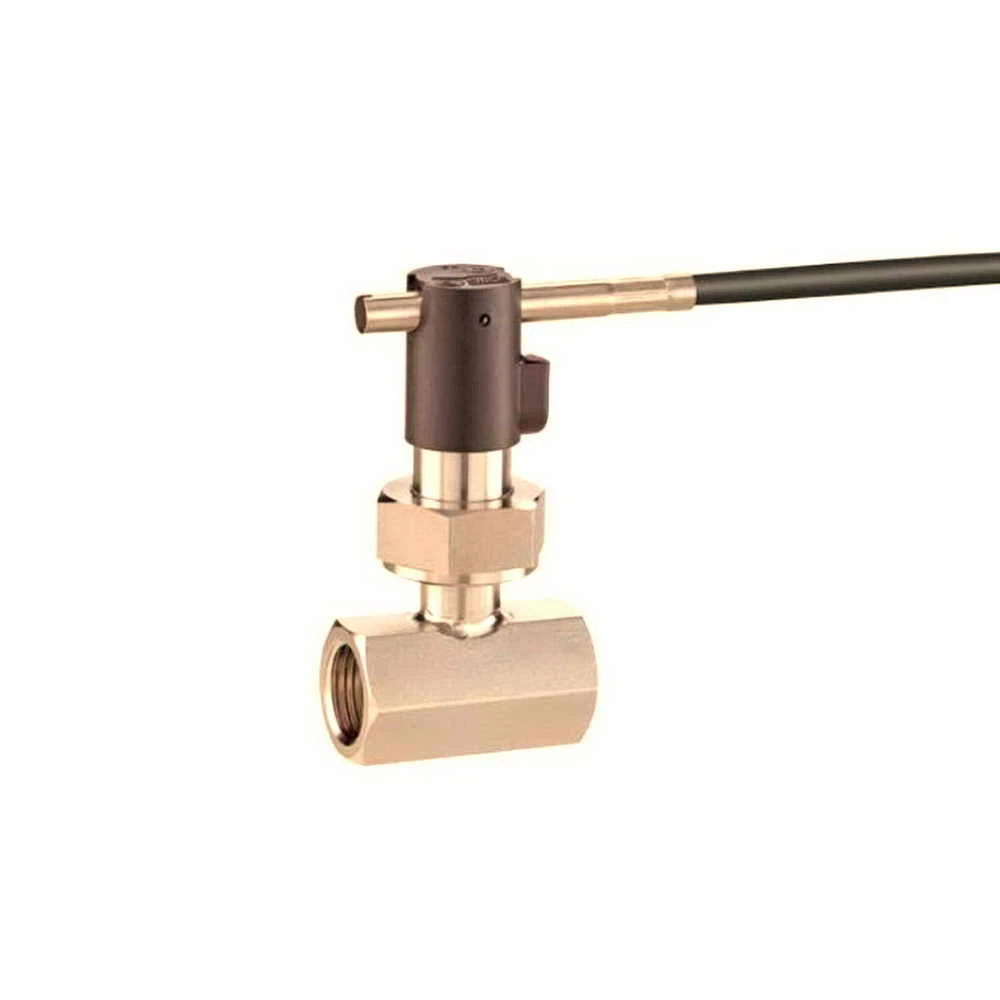

Compact Flow switch Type: VH325M01111I51 | G1″ (DN25) connection (brass)

€221,00 (€267,41 incl. VAT)

Type: VH325M01111I51
90261089 DE
Brass pipe section
Stainless steel tube section
G 1 female thread DN 25, PN 25
Max. Medium temperature 110°C
Output potential-free contact
PVC jacketed cable 1500 mm

Available on backorder

96.42% Has a good to very good experience with SENSORS.NL
Personalized customer service
Spacious assortment with a wide range of top brands
Need an additional discount for quantities? Please contact us

SKU: VH325M01111I51 Category: Flow switches Tag: Compact Flow switch Type: VH325M01111I51

Technical Specifications:

Switching function:
- Contact closes with increasing current
- Contact opens on decreasing current
- Return possible
Pressure rating PN 25
Medium temperature -25 ... 110 ° C
Ambient temperature -25 ... 80 ° C
Electrical connection 1.5 meters of PVC cable
Current switching max. 1 A
Voltage switching max. 230 VAC, 48 VDC
Rating max. 26 VA, 20 W
Degree of protection EN 60529 IP65

Rate this product

Weight	1 kg
Brand	SIKA

Product Documents

Datasheet
