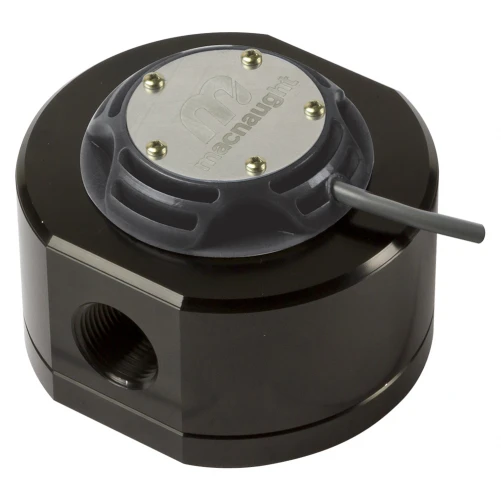

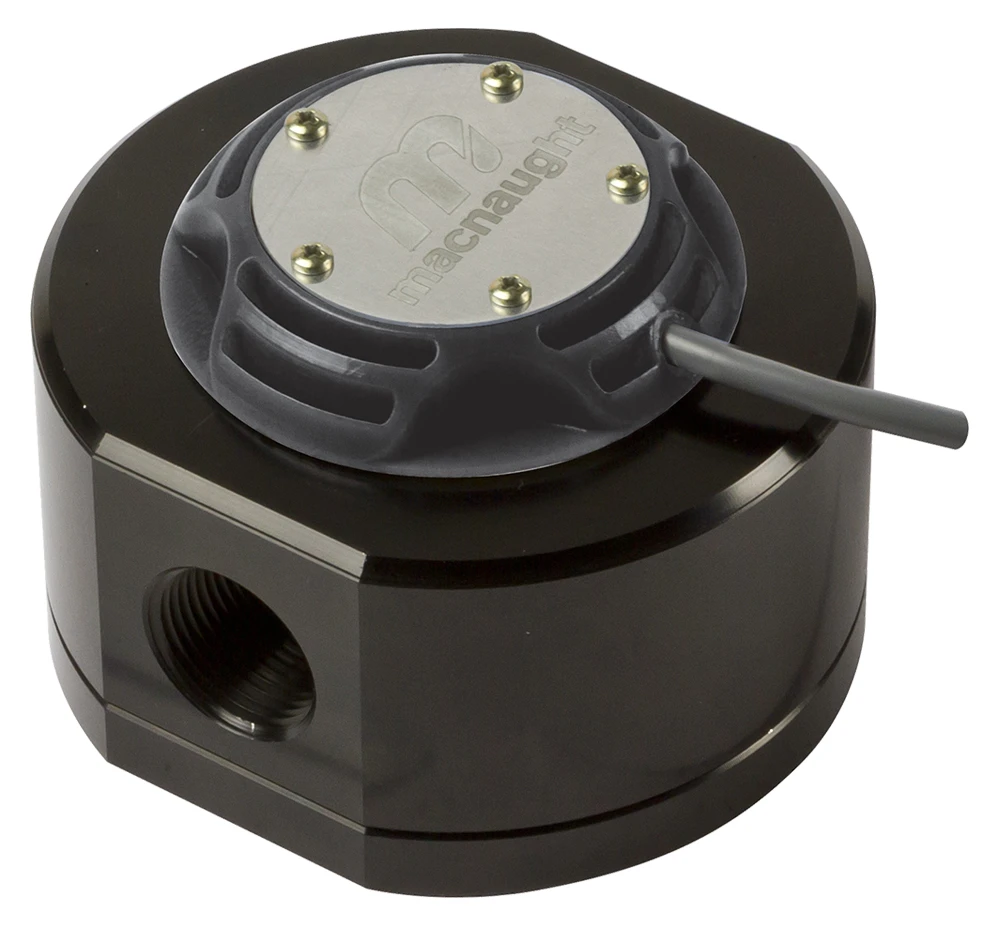

Fuel and oil flow meter, 3/4″ ports, 3 - 80 l/min, 138 bar (2000psi) / MX19F

€1.286,50 (€1.556,67 incl. VAT)

MX19F Fuel and oil gauge
Aluminum housing, Viton seal
Process connection: 3/4″ ports
Flow range 3 - 80 l/min, 138 bar (2000psi)
Robust design
Suitable for different liquids

Available on backorder

Waarom kopen bij Sensors.nl:

Uitstekend beoordeeld: 96.42% heeft een goede tot zeer goede ervaring
Persoonlijke klantenservice en advies
Extra korting bij grote aantallen mogelijk: Neem contact op

Add to quote

SKU: MX19F-1HA Categories: Flow Meters, Sensors.nl Tag: Fuel flow meter MX19F

Beschrijving

Product Structure MX19F-1HA:

19: 3/4" Port Size - 3-80L/min (0.8-21G/min)
F: Aluminum body, FKM (Viton) Seals
1: 3/4″ BSP Threaded Connections, 138bar Max.
Pressure (2000psi)
H: High Viscosity PPS (Ryton) Rotors >1000cPs
Stainless Steel Shafts, No Bushes
A: Standard Pulse Cap fitted - 1m Cable
1x Reed and 1x Hall Effect Sensor
Average K-Factor (Pulses/Litre) = 52
Accuracy = ±0.5%, Repeatability = ±0.03%
Max Temp. = 80°C (176°F)

Applications:

Service and tanker trucks
Fuel depots
Portable tank systems
Blending and production of biodiesel
Mixing and dispensing of lubricants
Dosing and test benches, hydraulic fluids
Fuel consumption boiler and generator
Fuel consumption for mining, construction, and military vehicles
Bitumen/asphalt production

Flow meters with oval gears are ideally suited for applications that require accurate metering rates. Measurement of very low flow rates, pulsating flow, small batch sizes, viscous products and non-conductive liquids are all ideal applications for oval gear meters. Because these meters do not require flow control, straight lines are not required, so they can be used in installations where space is limited without affecting performance.
