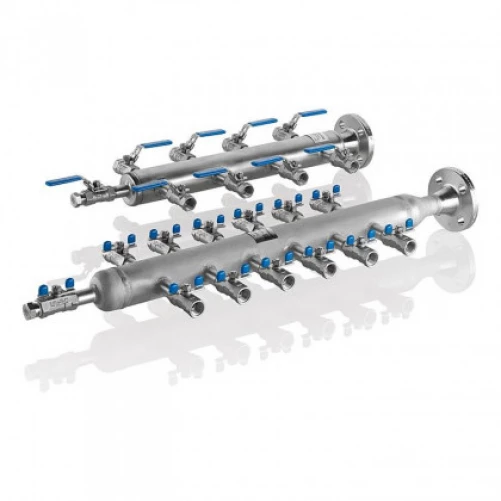

Air Headers / L210-NGA-B044PP - 10 way

AS-Schneider Air Headers are used to supply several users with instrument air. Besides multiple typess of standard styles we also supply the Air Headers in accordance with specific customer demands.

Selection can be made from a comprehensive range of pipe styles with a variety of connections and material options, optimizing installation and access opportunities.

Pressure-Temperature Rating:

Max. allowable (Working) Pressure (PS): 40 bar (580 psi)
Max. allowable Temperature (TS): 50°C (122°F)
Part No.: L210-NGA-B044PP

L Air Headers
2
Pipe Size: 2″ Pipe

10 Number of Outlet Ports: 10 (5 on each side - on opposite side)
–
NGA Inlet: Flange 1″ Class 150 RF
–
B04 Outlet Ports: Ball Valve 1/2 NPT Female, Lever Operated
4 Drain Connection: Ball Valve 1/2 NPT Female, Lever Operated, plugged
P Material:Stainless Steel
P Options: Mounting Bracket for 2″ Pipe c/w 'U' Bolt
