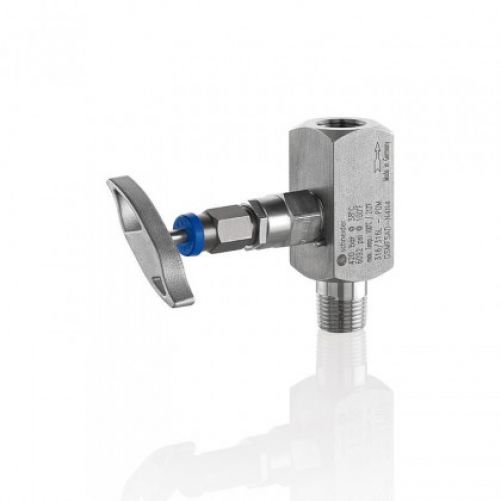

Soft Seated Gauge Valves – G types
AS-Schneider E Series Soft Seated Gauge Valves G types are designed for mounting to Pressure Gauges, Pressure Transmitters and Pressure Switches. The standard types GS is equipped with a bleed screw. The GA types is provided with a vent / test port, as standard 1/4 NPT Female. A pipe plug is installed in this port by default.
Bore Size: 1/4″ (6.35 mm)
The valves are fully roddable due to the Cone Design Valve Seat.
Part No.: GSMFSKD-N4N4
G Gauge Valve
S Vent Connection: Bleed Screw
M Inlet: Male Thread
F Outlet: Female Thread
S Material: 1.4401 / 1.4404 / 316 / 316L
K Stem Seal / Packing: O-Ring FKM
D Seat Material: POM
–
N4 Inlet Thread Size: 1/2 NPT
N4 Outlet Thread Size: 1/2 NPT
