Manifolds for Ultrasonic Flow Meter Applications U2F/U2T types

Productinformatie en datasheets →

Waarom kopen bij Sensors.nl:

Uitstekend beoordeeld: 96.42% heeft een goede tot zeer goede ervaring

Persoonlijke klantenservice en advies

Extra korting bij grote aantallen mogelijk: Neem contact op

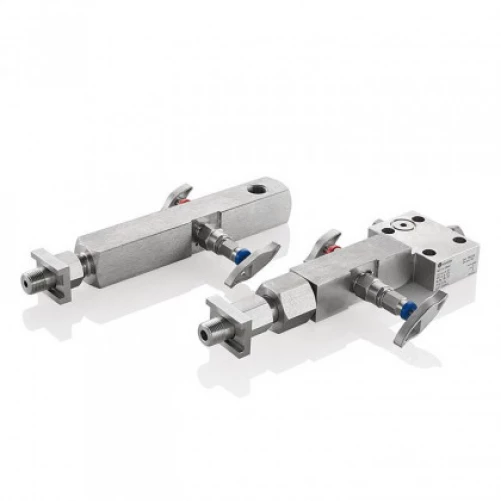

AS-Schneider U2F/U2T types Manifolds are designed for close coupled installations to ultrasonic flow meters. AS-Schneider is providing 2 typess with regard to the instrument connection, a flanged style and a threaded style. Both typess are Multiport typess (3 outlet ports) – Details see below drawings. The process connections, as standard, are 1/2 NPT female threaded. Both manifolds styles are supplied with a stabilizer shoe.

Bore Size:
– Isolate Valves – 1/4″ (6.35 mm) – Roddable- Vent Valves – 0.138″ (3.5 mm)

Part No.: U2T-SABN4

U Manifold for Ultrasonic Flow Meter Applications
2 Quantity Bonnets: 2
T Manifold Design: Threaded Style
–
S Material: 1.4401 / 1.4404 / 316 / 316L
A Stem Seal / Packing: PTFE
B Seat Material: POM x POM
N4 Inlet – Thread Size: 1/2 NPT
