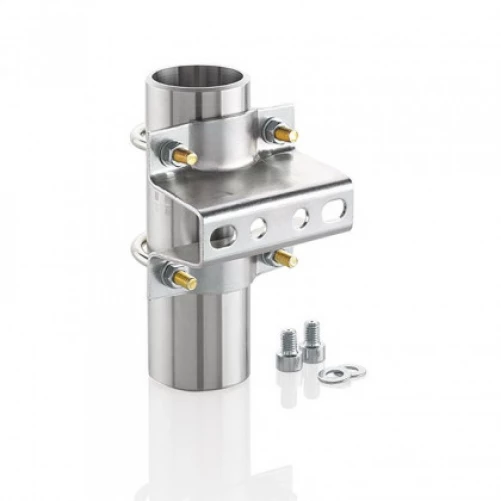

Mounting Bracket Kit AKM-D types and AKM-C types

The Bracket fits to AS-Schneider E Series Manifolds types D, W and 5 as well as to our F Series Manifolds types S541/N541. The difference between AKM-D and AKM-C is just the thread types of the manifold/bracket bolts The standard bracket types D requires M10 bolts and for the CoplanarTM Style Manifolds 3/8-16 UNC bolts are required. The bracket is designed for panel, wall and 2″ pipe mounting and gives full clearance for ease of handle operation.

The Mounting Bracket contains:
1 Mounting Bracket
2 ‘U’ Bolts
4 Washers – 8.4
4 Hexagon Nuts M8
2 Washers – 10.5
2 Socket Head Cap Screws M10x14 → AKM-D types respectively
2 Socket Head Cap Screws 3/8-16 UNC x 5/8″ → AKM-C types
Part No.: AKM-DPS AKM
Mounting Bracket Kit – D Suitable for: E Series Manifolds types D, W and 5 as well as our F Series Manifolds types S541/N541
P Mounting Method: 2″ Pipe Mounting S Material: Stainless Steel, 300 Series
