5 Valve Manifolds T5A/T5S types

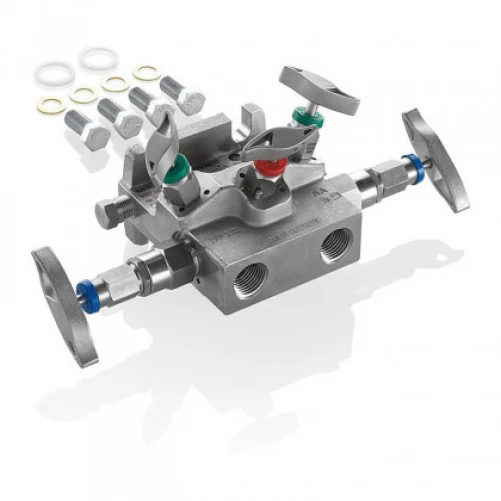

AS-Schneider Soft Seated Direct Mount Manifolds T5A/T5S types are designed for direct mounting to Differential Pressure Transmitters. The inlet connections (process connection), as standard, are 1/2 NPT female threaded. The standard vent connection is 1/4 NPT female and is supplied with a fitted Bug Plug as standard. The test ports 1/4 NPT female are plugged by default. Accessory kits incl. washers are required for manifold to transmitter mounting, because the manifolds are provided with slotted bolt holes.

Bore Size:

– Isolate Valves – 1/4″ (6.35 mm) or 3/8″ (9.5 mm)
– Equalize and Vent Valves – 0.138″ (3.5 mm)

The process to instrument connection is fully roddable due to the Cone Design Valve Seat of the Isolate Valves.

Part No.: T5S-SKB-4D

T T-Style Manifold – Thread x Flange
5 Quantity Bonnets: 5
S Manifold Design – Bore Size Isolate Valves: 3/8″ (9.5 mm)
–
S Material: 1.4401 / 1.4404 / 316 / 316L
K Stem Seal / Packing: O-Ring FKM
B Seat Material: POM x POM
–
4 Accessory Kit: In SS – to mount Transmitters with Rosemount CoplanarTM Flange
D Option: Dielectric Isolation
