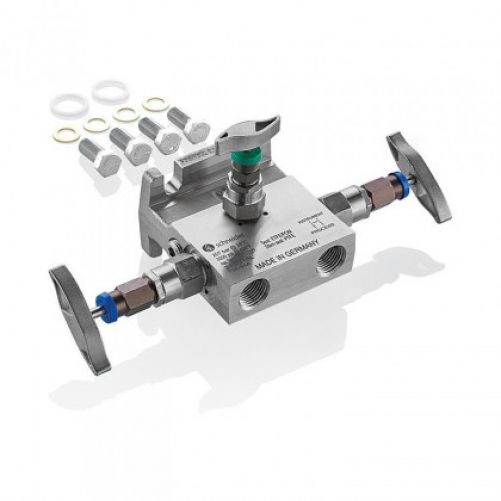

AS-Schneider Soft Seated Direct Mount Manifolds T3A/T3S types are designed for direct mounting to Differential Pressure Transmitters. The inlet connections (process connection), as standard, are 1/2 NPT female threaded. The standard 3 Valve Manifolds T3A/T3S types have no vent connections. Accessory kits incl. washers are required for manifold to transmitter mounting, because the manifolds are provided with slotted bolt holes.
– Isolate Valves – 1/4″ (6.35 mm) or 3/8″ (9.5 mm)- Equalize Valves
– 0.138″ (3.5 mm)The process to instrument connection is fully roddable due to the Cone Design Valve Seat of the Isolate Valves.
Part No.: T3S-SKA-1D
T T-Style Manifold – Thread x Flange
3 Quantity Bonnets: 3
S Manifold Design – Bore Size Isolate Valves: 3/8″ (9.5 mm)
S Material: 1.4401 / 1.4404 / 316 / 316L
K Stem Seal / Packing: O-Ring FKM
A Seat Material: ETFE x POM
1 Accessory Kit: In CS – to mount Transmitters with Traditional Flange
D Option: Dielectric Isolation
