AS-Schneider Soft Seated Remote Mounted Manifolds R3A/R3S types are designed for remote installation from Differential Pressure Transmitters. The inlet and outlet connections, as standard, are 1/2 NPT female threaded. The standard 3 Valve Manifolds R3A/R3S types have no vent connections.
– Isolate Valves – 1/4″ (6.35 mm) or 3/8″ (9.5 mm)
– Equalize Valves – 0.138″ (3.5 mm)The process to instrument connection is fully roddable due to the Cone Design Valve Seat of the Isolate Valves.

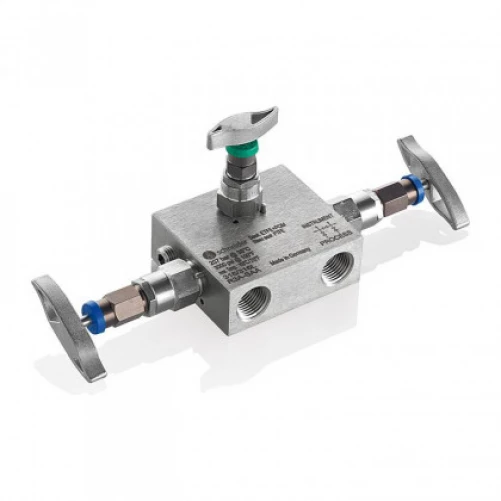

Part No.: R3A-SAA
R Remote Mounted Manifold
3 Quantity Bonnets: 3
A Manifold Design – Bore Size Isolate Valves: 1/4″ (6.35 mm)
S Material: 1.4401 / 1.4404 / 316 / 316L
A Stem Seal / Packing: PTFE
A Seat Material: ETFE x POM
