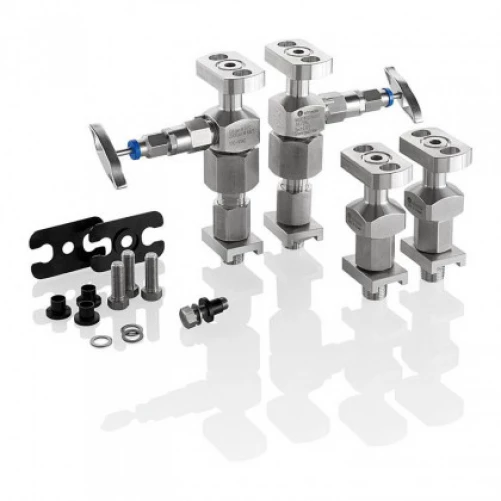

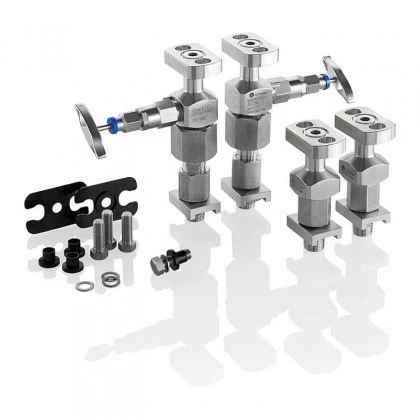

Stabilized Connectors

AS-Schneider Stabilized Connectors are close coupled to orifice meter / orifice fittings. The inlet connection (process connection), as standard, is 1/2 NPT male threaded. The Stabilized Connectors are always supplied in pairs. Depending on the application, a Stabilizer Shoe is supplied resp. recommended providing a very solid and efficient connection.

3 different typess are available: ① Short types ② Long types and ③ Integral Valve types.

Bore Size: 3/8″ (9.5 mm) – Roddable

Part No.: STC-VSKE-1D

STC Stabilized Connector
–
V Stabilized Connector Design: With Integral Valve
S Material: 1.4401 / 1.4404 / 316 / 316L
K Stem Seal / Packing: O-Ring FKM
E Seat Material: ETFE – 2,000 psi (138 bar)
–
1 Accessory Kit: In CS, Seal Ring in PTFE
D Option: With Dielectric Isolation Kit
