3 Valve Manifolds H3A/H3S types

S-Schneider Soft Seated Direct Mount Manifolds H3A/H3S types are designed for direct mounting to Differential Pressure Transmitters. The inlet connection (process connection), as standard, is flanged style. The standard 3 Valve Manifolds H3A/H3S types have no vent connections. Accessory kits incl. washers are required for manifold to transmitter mounting, because the manifolds are provided with slotted bolt holes.

Bore Size:

– Isolate Valves – 1/4″ (6.35 mm) or 3/8″ (9.5 mm)
– Equalize and Vent Valves – 0.138″ (3.5 mm)

The process to instrument connection is fully roddable due to the Cone Design Valve Seat of the Isolate Valves.

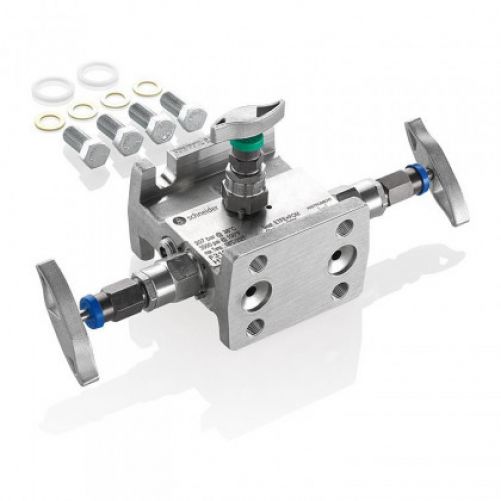

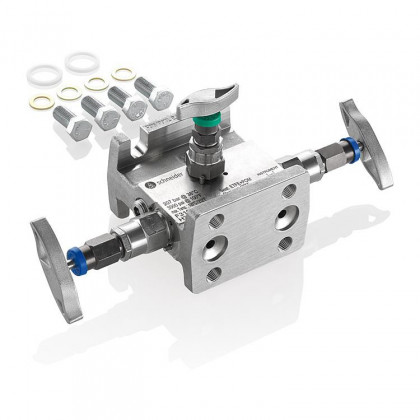

Part No.: H3A-SAA

H T-Style Manifold – Flange x Flange
3 Quantity Bonnets: 3
A Manifold Design – Bore Size Isolate Valves: 1/4″ (6.35 mm)
–
S Material: 1.4401 / 1.4404 / 316 / 316L
A Stem Seal / Packing: PTFE
A Seat Material: ETFE x POM
