VZO 4 OEM Aquametro Fuel / Oil Meter - (1-50 Max 80 litre/hr)

Name: VZO 4 OEM Aquametro Fuel / Oil Meter - (1-50 Max 80 litre/hr)
SKU: VZO 4 OEM-RE 0.005
Availability: PreOrder

€299,95 (€362,94 incl. VAT)

VZO 4 Contoil Fuel / Oil Meter - (1-50 Max 80 litre/hr)

Blind unit, Pulse output only

1/8″ BSP

Product Code: 92680

Available on backorder

Waarom kopen bij Sensors.nl:

VZO 4 OEM RE0.005

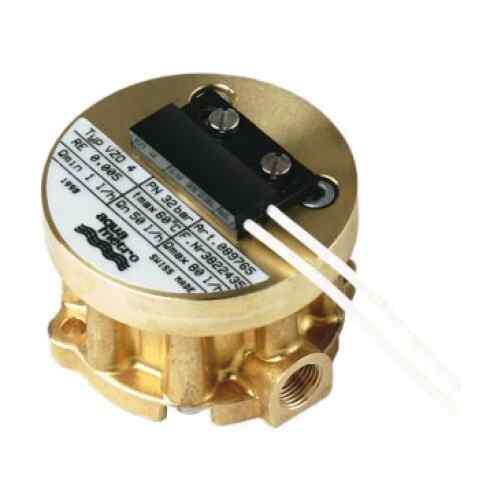

CONTOIL^® Oil Volume Meter VZO 4 OEM-RE 0.005

Ring piston meter for light fuel oil and diesel oil, without register unit, with Reed pulser, version for OEMs

Nominal diameter: DN 4 mm

Connection (at side): G1/8″ inside thread

Nominal pressure: PN 32 bar

Dimensions: Dia 54 x 42 mm

Installation position: horizontal / vertical

Temperature, max: 60°C

Measuring range (at visc. 1...20 mPa.s): 1...80 l/h

Max. continuous flow Qn: 50 l/h

Max. measuring deviation: 2.0...80 l/h ± 1%

1...2 l/h +1/-2 %

Repeatability: ± 0.2%

With built-on RE Reed pulser

Contact load max: 230 V AC/DC, 50 mA, 3 VA

Pulse value: 0.005 Litres per pulse

Rate this product

Weight	10 kg
