VZO 25 Aquametro Oil Meter - (75-2000 Max 3000 litre/hr) Pulse Output = 0.1 Litre/Pulse

Name: VZO 25 Aquametro Oil Meter - (75-2000 Max 3000 litre/hr) Pulse Output = 0.1 Litre/Pulse
SKU: VZO 25 FL 180/25-IN 0.1
Availability: PreOrder

€2.340,00 (€2.831,40 incl. VAT)

VZO 25 Contoil Oil Meter - (75-2000 Max 3000 litre/hr)
Mechanical Totalizer (Litres) Non-reset
Pulse Output = 0.1 Litre/Pulse Inductive Pulser
25mm Flanged PN25 (JIS and ANSI no additional cost)
Product Code: 92266

Available on backorder

96.42% Has a good to very good experience with SENSORS.NL
Personalized customer service
Spacious assortment with a wide range of top brands
Need an additional discount for quantities? Please contact us

Add to quote

SKU: VZO 25 FL 180/25-IN 0.1 Categories: Aquametro, Fuel consumption, Flow Meters, Mechanical flowmeters Tag: Aquametro

VZO 25 Contoil Oil Meter - (75-2000 Max 3000 litre/hr)
Mechanical Totalizer (Litres) Non-reset
Pulse Output = 0.1 Litre/Pulse Inductive Pulser
25mm Flanged PN25 (JIS and ANSI no additional cost)
Product Code: 92266
Max Temp 180C
Max Pressure PN25
Positive Displacement / Low Pressure Drop Design
Accuracy 1% of actual value
8 Digit Totaliser

Specification

VZO 25 FL 180/25-IN0.1

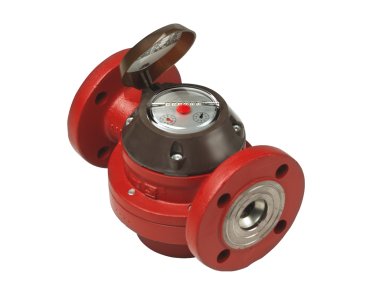

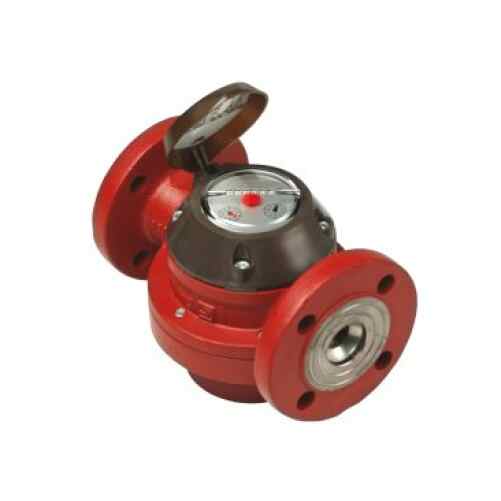

CONTOIL® oil meter VZO 25 FL 180/25-IN 0.1
Ring piston meter for mineral oil, with rotatable roller counter

Nominal diameter: DN 25 mm
Connection for flanges: DN 25 to DIN 2501
Nominal pressure: PN 25 bar
Installation length: 190 mm
Installation position: horizontal / vertical
Temperature, max: 180 °C
Measuring range (at visc. 1...20 mPa.s): 75...3000 l/h
Max. continuous flow Qn: 2000 l/h
Max. measuring deviation: ± 1% of measured value
Repeatability: ± 0.2%
Narrowest readable value: 0.1 l
Registration capacity: 10 Mio l

With built-on inductive IN pulser as per DIN 19234
Supply 5...15 V DC, signal at 8 V DC 1 mA / 3 mA
Pulse value: 0.1 l
