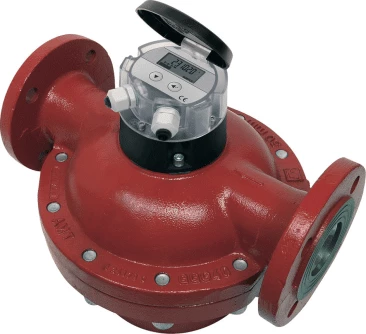

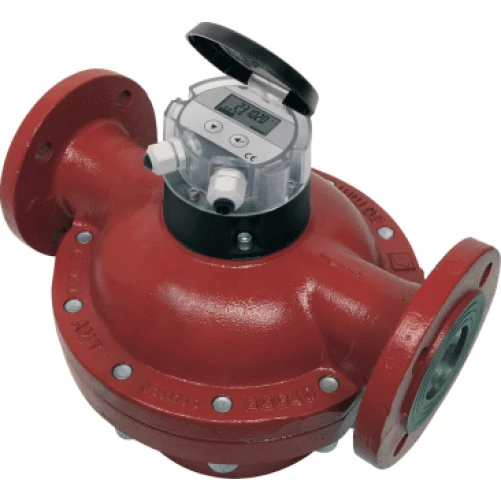

VZFA II 50 Contoil Oil Meter - (750-20,000 Max 30,000 litre/hr)

Specification

VZFA II 50 FL 180/25
CONTOIL^® flow meter for mineral oil.
Electronic counter with display

Characteristics:
Display of total volume, resettable
trip volume (up to 8 totalizers,
4 or resettable), flow rate,
temperature, mass and normalized
volume in m3, liters, US gallons or
tons, kilograms and pounds.
Programmable outputs.
Nominal diameter: DN 50mm
Connection flange: DN 50
Nominal pressure: PN 25bar
Installation length: 350mm
Installation position: horiz / vert
Temperature, max: 180°C
Measuring range: 750...30000l/h
Max. continuous flow: 20000l/h
Max. deviation: ±0.5% of value
Repeatability: ±0.2%
Registration capacity: 100Mio
LCD display: 8 positions, 8mm high
Outputs: 1 analog and 2 digital
Analog: 4...20mA
Digital Pulse, Frequency, Logic
Nominal voltage: 24V DC
Power supply via 4...20mA: 6...30V DC
Protection class: IP66/IP68/IP69
Ambient temperature: -25...+70°C
