| Technical data | |
| Flow tube | Grilamid (PA-12) (*PES) |
| Float | AISI 329 or PTFE depending on range Note! Other possible wetted metal parts: AISI 316 |
| Connectors | PVC (*AISI 316, PVDF) |
| Seals | Nitrile (*Viton®, EPDM) |
| Connections | NPT/G 1¼" or 1.97" (50 mm) socket |
| Maximum pressure | 145 psi at 68°F (*145 psi at 176°F ) |
| Maximum temperature | 167°F at 29 psi (*248°F at 29 psi) |
| Weight | 36 oz. |
| *Special construction upon request | |

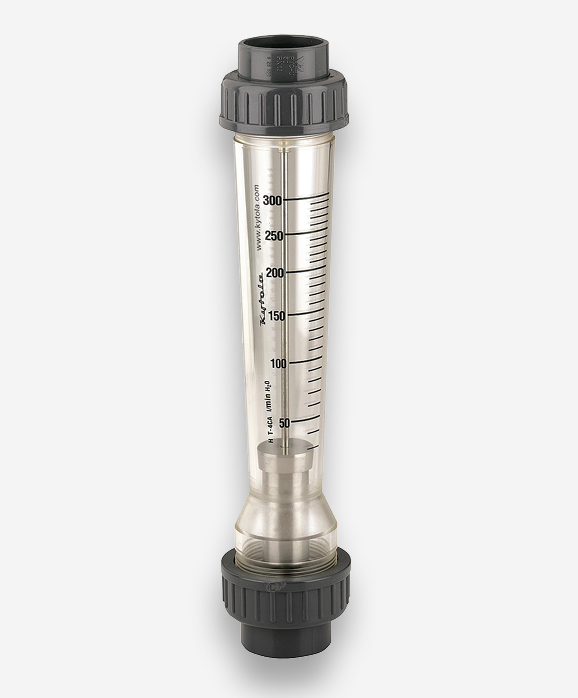

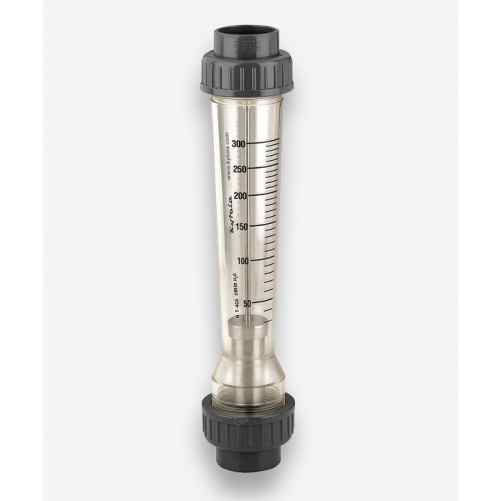

Visual flow meter Type: HT | 0.6 - 6.4 m3/h water PVC 50 mm connection
€243,22 (€294,30 incl. VAT)
- Measuring range 1.6 - 6.4 m³/h water
- Connection 50 mm PVC glue socket
- Max. Pressure 10 bar / 20° Celsius
- Max. Temperature 50° Celsius / 2 bar
- Material Measuring tube Grillamid TR55 (PA-12-020)
- Float stainless steel 329
- O-rings NBR
- Connections PVC
