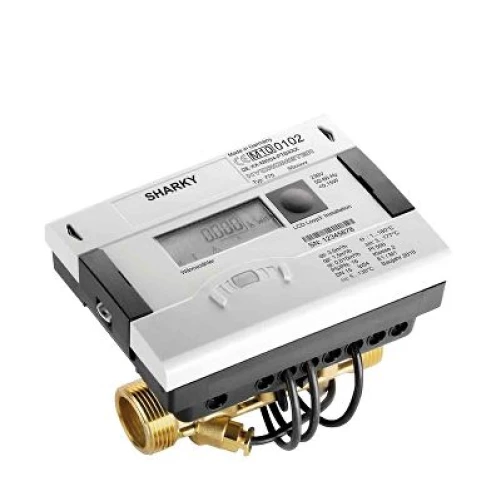

Ultrasonic heat meter Sharky 774 H/C M-Bus Qp1.5-110mm-G¾"

Diehl's ultrasonic heat meter also comes in a compact simple version for small consumers (mostly apartments with block heating). The meter is of course suitable for measuring heat and cold.

We supply the Sharky774 with an onboard 868 MHz radio module for remote reading. If desired, this heat meter can also be supplied with an M-Bus output.

Key features:

• Standard equipped with onboard radio module 868 MHz (Open Metering Protocol).
• Measurement of both central heating and cooling.
• No further installation requirements, straight flow lengths are not necessary.
• Temperature range volume part from 5 °C to 130 °C. Briefly up to 150 °C
• Temperature difference from 3 K to 177 K (even very accurate from 0.5 K).
• Flow measurement every 2 seconds and temperature measurement every 16 seconds.
• Sensors: Pt500.
• High accuracy (class 2).
• Large number of indications on the display.
• Datalog function with programmable interval.
• Readout using the distance measuring system IZAR@NET / IZAR PLUS PORTAL and/or interfacing with Brunata WebMon.
• MID admission.
