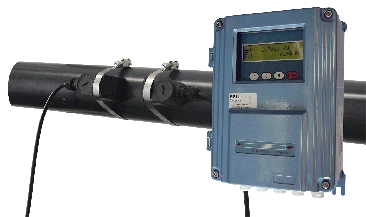

Ultrasonic clamp-on flowmeter for fixed installation Type: BFU-100-F-M (50-700 mm)

Ultrasone clamp-on flowmeter voor vaste opstelling Type: BFU-100-F-M (50-700 mm) - Image 2

Ultrasone clamp-on flowmeter voor vaste opstelling Type: BFU-100-F-M (50-700 mm) - Image 3

Ultrasone clamp-on flowmeter voor vaste opstelling Type: BFU-100-F-M (50-700 mm) - Image 4

Ultrasonic clamp-on flowmeter for fixed installation Type: BFU-100-F-M (50-700 mm)

Type: BFU-100-F-M
Fixed installation, wall-mounted
Clamping sensors 50 mm - 700 mm
No maintenance required
Display: m3, liters, gallons, etc.
Power supply: 90-260 V AC or 24 V DC
Outputs: pulse, alarm, 4-20 mA, Modbus output

96.42% Has a good to very good experience with SENSORS.NL
Personalized customer service
Spacious assortment with a wide range of top brands
Need an additional discount for quantities? Please contact us

SKU: BFU100 F-M (50 -700 mm) Categories: Sensors.nl, Ultrasonic Flow Meters

An ultrasonic flow meter and volume flow display that allows quick and easy installation of snap-on flow sensors without cutting into existing piping.

Specifications:

Horizontal or vertical installation
Max. Temperature transducer: -20 °C to + 70 °C (option: 160 °C)
Accuracy: <1% of reading above 0.6 ft / sec / 0.2 m / sec.
Outputs: 1x 4-20mA, 1x pulse output, 1x alarm output, Modbus (all configurable
Ingress Protection: Display = IP65, Transducers = IP65 (IP68 on request)
Tube size 50 - 700 mm
Mbus converter, Radio Pulse transmission and GSM / GPRS telemetry / logging options on request

Rate this product

Weight	1 kg
Brand	Sensors.nl

Product Documents

Datasheet
