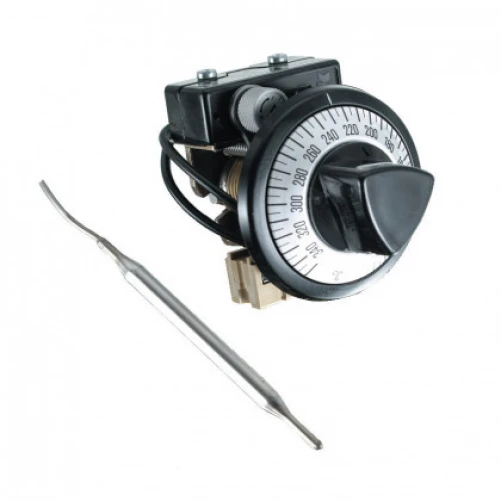

Trafag recessed thermostat LF series

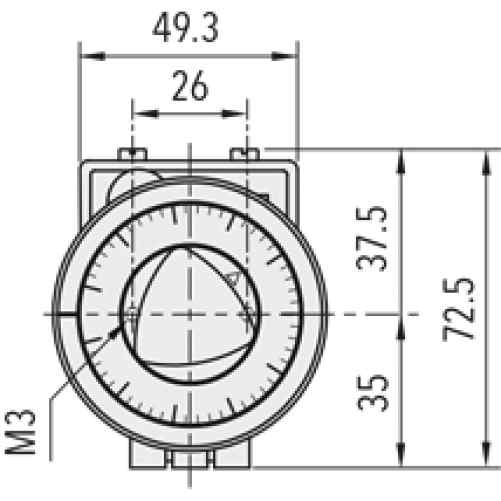

Trafag Inbouw-thermostaat LF-serie - Image 2

Trafag recessed thermostat LF series

Range (°C)

Sensor material

Switching differential

Clear

Checking current stock status? Then contact us or use the live chat.

96.42% Has a good to very good experience with SENSORS.NL
Personalized customer service
Spacious assortment with a wide range of top brands
Need an additional discount for quantities? Please contact us

SKU: N/B Categories: Immersion Thermostats, Trafag, Trafag thermostats Tag: thermostaat

Measuring range [°C] : -30...+40 to +350.0
Sensor : mechanical
Capillary: 2 mtr., Cu / stainless steel
Output : microswitch SPDT
Gear differential: adjustable
Housing : Noryl, IP00
Ambient temperature [°C] : to +70
Accuracy: +/- 2% of full scale
Setting: external

Download specifications

Rate this product

Weight	1 kg
Range (°C)	-30 … +40, +20 … +150, +20 … +230, +5 … +95, +70 … +350, 0 … +35
Sensor material	1.4435 (AISI316L), Copper
Switching differential	0.7 ... 10 (adjustable), 2 ... 12 (adjustable), 2.5 ... 16 (adjustable), 3 ... 32 (adjustable), 4 ... 40 (adjustable)
Brand	Trafag

Product Documents
