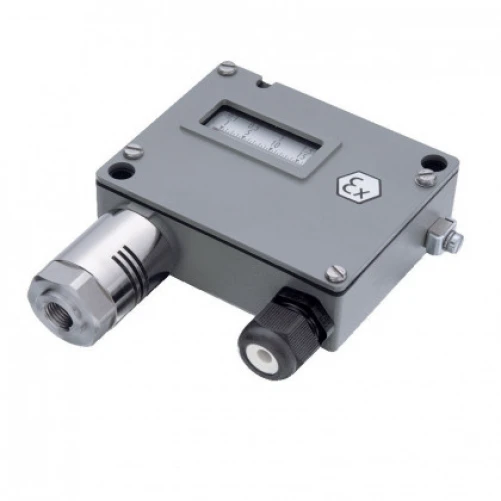

Trafag Explosion-proof pressure switch EXP-900

Trafag Explosion-proof pressure switch EXP-900

Price range: €577,83 through €662,95

Productinformatie en datasheets →

Staff discount:

Quantity	Price
1 - 4	Price range: €577,83 through €662,95
5 - 9	Price range: €548,94 through €629,80
10 - 24	Price range: €520,05 through €596,66

Pressure range (Bar)

Overpressure max.

Switching differential

Clear

Checking current stock status? Then contact us or use the live chat.

Waarom kopen bij Sensors.nl:

Uitstekend beoordeeld: 96.42% heeft een goede tot zeer goede ervaring
Persoonlijke klantenservice en advies
Extra korting bij grote aantallen mogelijk: Neem contact op

SKU: EXP series Categories: Explosion-proof, Trafag, Trafag Pressure Switches Tag: Trafag Explosion-proof pressure switch EXP-900

Beschrijving

Measuring range [bar] : -0.9...+1.5 to +16.0
Sensor : bellows, stainless steel (1.4435)
Output : microswitch SPDT
Thread : G1/4 BSP internal
Housing : Alu epoxy coated IP65
Plug : Pg 13.5
Sensor temp [°C] : to +150
Class: EEx ed IIC T6
Approvals : PTB 02 ATEX 1050

Download specifications

Rate this product

Extra informatie

Weight	1 kg
Pressure range (Bar)	-0.9 … 1.5, 0.2 … 2.5, 1 … 16, 0 … 6
Overpressure max.	10, 24, 12
Switching differential	0.2 (fixed), 0.4 (fixed), 0.9 (fixed)
Brand	Trafag

Downloads

Product Documents

Datasheet
