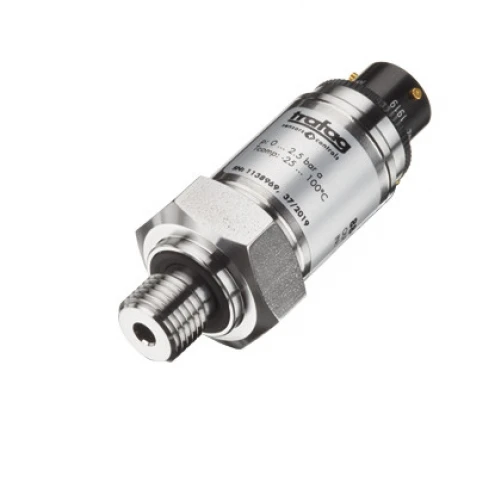

Trafag Pressure Transmitter - 0.05% FS accuracy ESH 8845 (on request)

Pressure transmitter ESH 8845 is the perfect high-end solution for customers in the test and measurement industry looking for the highest accuracy and robust design. The ESH 8845 with high-end piezoresistive sensor element is available in pressure ranges from 0...0.1 bar to 100 bar, various output signals, electrical and process connections, including frontal and coil diaphragm process connections.

• Measuring range: 0 ... 0.1 to 0 ... 100 bar
• Pressure connection: G1 / 4 " external
• Sensor technology: piezo-resistive
• Protection rating: IP65 / 67
• Linearity to: 0.05% FS
• Junction: EN175301-803-A; M12x1; MIL-C 26482; Binder 723
• Output: 4 ... 20 mA, 0 ... 5 VDC, 0 ... 10 VDC
• Media temperature: -40 ° C ... + 125 ° C
• Temperature range: -40 ° C ... + 125 ° C
