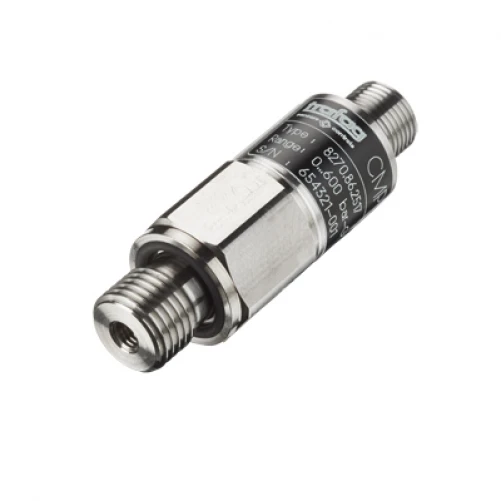

Trafag CANopen pressure transmitter CMP-8270

Trafag CANopen druktransmitter CMP-8270 - Image 2

Trafag CANopen pressure transmitter CMP-8270

Price range: €425,00 through €541,30

Staff discount:

Quantity	Price
1 - 4	Price range: €425,00 through €541,30
5 - 9	Price range: €403,75 through €514,24
10 - 24	Price range: €382,50 through €487,17

Pressure range (Bar)

Output

Accuracy @25°c typ.

Process Connection

Electrical connection

Clear

Checking current stock status? Then contact us or use the live chat.

Waarom kopen bij Sensors.nl:

Uitstekend beoordeeld: 96.42% heeft een goede tot zeer goede ervaring
Persoonlijke klantenservice en advies
Extra korting bij grote aantallen mogelijk: Neem contact op

Add to quote

SKU: Item no.: 8270 Categories: CANbus, Pressure transmitters, Sensors, Trafag

Beschrijving

The CANopen miniature pressure transmitter CMP is based on Trafag's proprietary thin-film-on-steel technology that provides high accuracy and long-term stability even in harsh environments. The most compact design and proven high-quality electronics with CiA-certified, comprehensive CANopen functionality makes the CMP 8270 the best-in-class Canopen pressure transmitter.

Option:

Please check our standard model CMP-8271

5/5 - (1 stemmen)

Extra informatie

Weight	1 kg
Brand	Trafag
Pressure range (Bar)	0 … 4, 0 … 6, 0 … 10, 0 … 16, 0 … 25, 0 … 40, 0 … 100, 0 … 250, 0 … 400
Output	CANopen bus protocol,pre-adjustment Node ID = 1, baud rate = 20 kbps
Accuracy @25°c typ.	± 0.5
Process Connection	G1/4" BSP external
Electrical connection	M12x1, 5 pole
