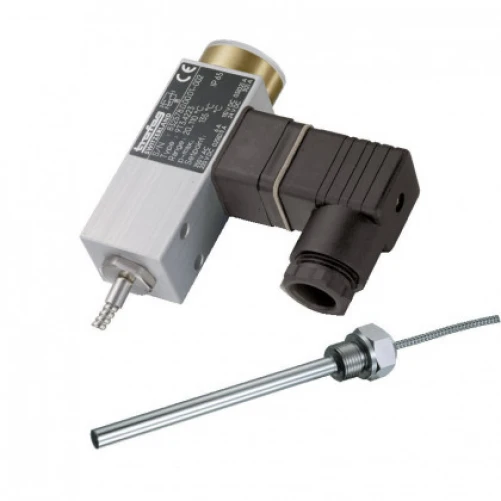

Trafag Block thermostat with fixed immersion tube ISPT-474 - ISPT15065

Trafag Blok-thermostaat met vaste dompelbuis ISPT-474 - ISPT15065 - Image 2

Trafag Block thermostat with fixed immersion tube ISPT-474 - ISPT15065

€276,81 (€334,94 incl. VAT)

Staff discount:

Quantity	Price
1 - 4	€276,81
5 - 9	€262,97
10 - 24	€249,13

Available on backorder

96.42% Has a good to very good experience with SENSORS.NL
Personalized customer service
Spacious assortment with a wide range of top brands
Need an additional discount for quantities? Please contact us

SKU: ISPT15065 Categories: Immersion Thermostats, Trafag, Trafag Block thermostat with 3 m capillary ISP-474, Trafag Thermostat with 3 m capillary ISN / 471 series, Trafag thermostats

Measuring range [°C] : +20 ... +150
Sensor: mechanical
Protection tube length: 65 mm
Tube material: Nickel plated brass
Screw Thread: G1/2
Output : microswitch SPDT
Gear differential: fixed
Housing : Alu epoxy coated IP65
Ambient temperature [°C] : -30...+70
Accuracy: +/- 2% of full scale
Setting: external

Download specifications

Known by the item numbers:

474.0331.142.14.1419.0065.58.V3
474 0331 142 14 1419 0065 58 V3
4740331142141419006558V3

Rate this product

Weight	1 kg
Range (°C)	+20 … +150
Sensor max.	165
Tube length (mm)	150
Tube diam.	10
Differential	6 (fixed)
Brand	Trafag
