SEA-65 230VAC - Pump with litre meter

SEA-65 230VAC · Pump with litre meter - Image 2

SEA-65 230VAC - Pump with litre meter

96.42% Has a good to very good experience with SENSORS.NL
Personalized customer service
Spacious assortment with a wide range of top brands
Need an additional discount for quantities? Please contact us

SKU: SEA-65 230 V AC 50-55 l/min | 31760 Categories: Gespasa, Lubricant

Beschrijving
Downloads

SEA-65 230 V AC 50-55 l/min | 31760

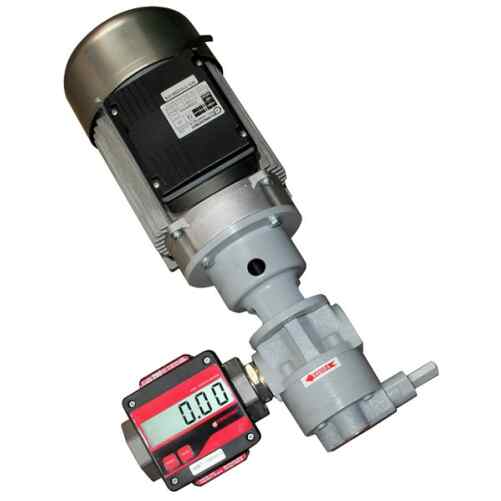

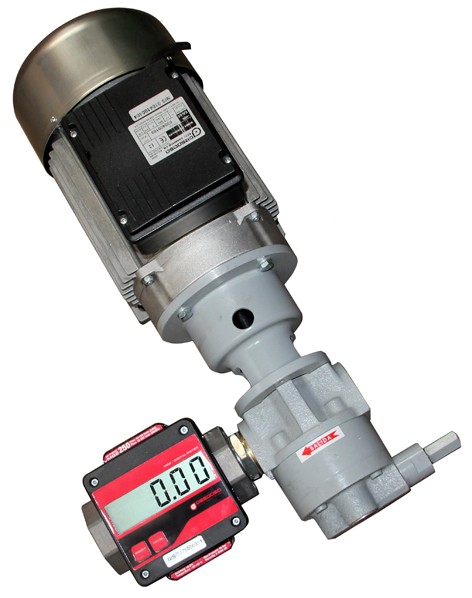

This EA-65 self-priming gear pump is suitable for transferring large quantities of lubricant through non-restrictive diameter pipes.

This pump is suitable for use in agriculture, construction, industry, ...

Suction height capacity of 2.5 m, both above-ground and underground tanks.

Technical data:

It is suitable for medium/low density lubricant transfer.
Suction: 2.5 m - Delivery: 40 m
Flow rate: 50-55 l/min with SAE-10W/30
Motor: 2.2 kW, self-ventilated, 230 VAC, single-phase - IP-55 protection
Thermal protector
Consumption: 10-15 A
1,400 rpm
Pressure: 6-8 bar (adjustable via the bypass valve)
Suction/pressure pump diameter: 1 1/4″ GAS (BSP)

Size and weight (approx.):

Dim.: 590x195x270 mm (length x width x height)
Weight: 33.5 kg
