- SBD-30 230 VAC AdBlue/DEF 200 liter trolley kit | 19331-CF00000
- SBD-30 12 VDC AdBlue/DEF 200 liter trolley kit | 19341-CF00000
APPLICATION:
- AdBlue/DEF feeding kit
- Model 19331-CF00000 has a built-in pump running on 230 VAC.
- The 19341-CF00000 with 12VDC pump also has a battery and charger built in for autonomous delivery without any electrical connection.
COMPRISING:

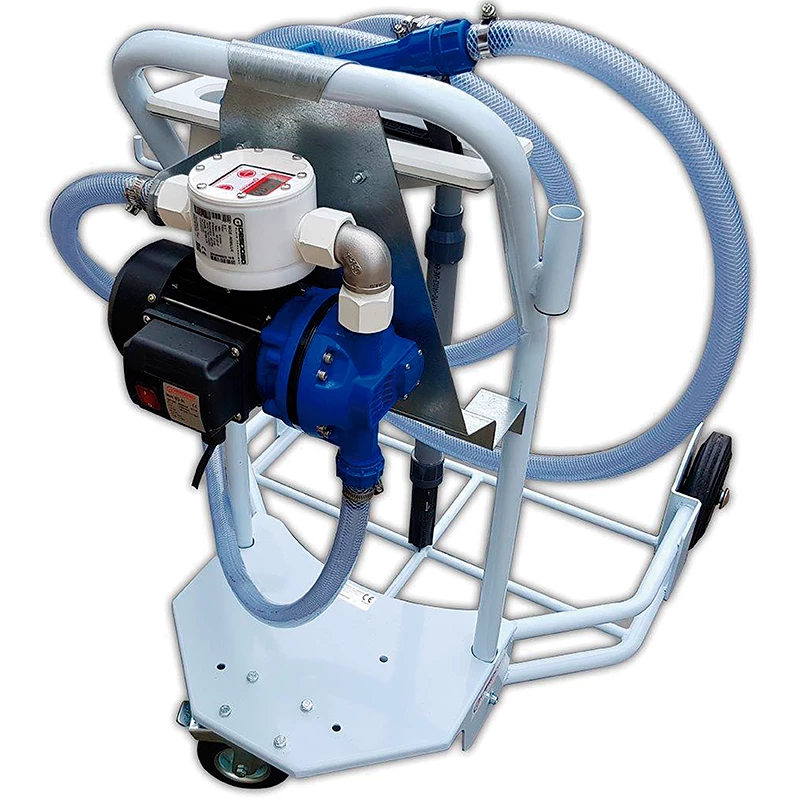

- Transport trolley for 200-liter drums with extra sturdy tubular frame. Two fixed wheels and one mobile wheel for better ergonomics and mobility. The trolley is equipped with a safety strap for the drum to prevent accidental leakage (drum not included). Some hooks are built in to roll up the cable.
- Electric transfer kit. This kit consists of a diaphragm pump (12 or 230 V, depending on the model) and the MGE-40Blue electronic accelerometer with a display showing the liters delivered.
Keys: TOTAL: shows the total liters delivered. RESET: it sets the proportion of liters delivered to 0. - Kit flow: 10 l/min or 30 l/min
- PA-60U automatic nozzle for Adblue/DEF with built-in swivel joint. It is possible to configure it to 10 l/min deliverable for light vehicles or 30 l/min for heavy vehicles .
- Measurement Accuracy: ±0.8%
- Mouthpiece hanger
- 4 m AdBlue/DEF hose
- Suction line with adapter to 200-liter drum
Optional:
- CDS suction connection
- Automatic nozzle - model ZVA AdBlue LV according to the ISO 22241-5 standard
