RVAZ2-24A

RVAZ2-24A

€157,00 (€189,97 incl. VAT)

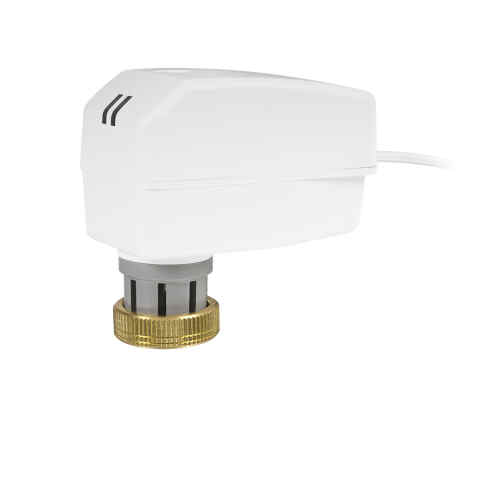

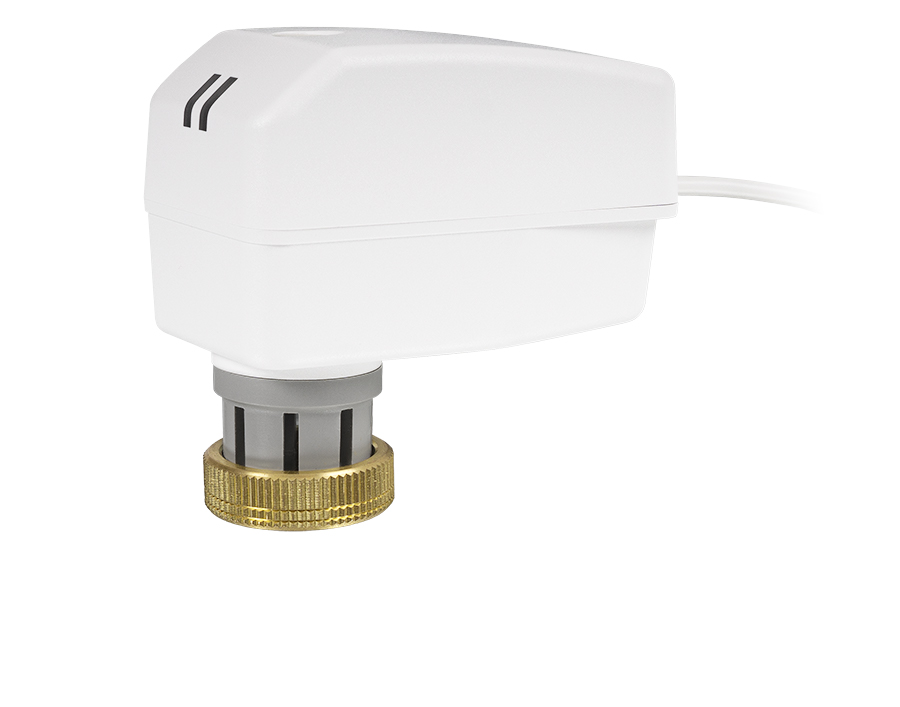

Electromechanical valve actuator

Checking current stock status? Then contact us or use the live chat.

  • 96.42% Has a good to very good experience with SENSORS.NL
  • Personalized customer service
  • Spacious assortment with a wide range of top brands
  • Need an additional discount for quantities? Please contact us
Add to quote
SKU: RVAZ2-24A Category: Tag:

Specifications

Specifications for RVAZ2-24A
Dimensions, external (WxHxD) 50x80x93 mm
Force 200 N
Supply voltage 24 V AC/DC
Power consumption 2 W / 6 VA
Cable length 1.5 m
Control signal 0(2)...10 V DC or 0(4)...20 mA
Feedback signal 0...10 V DC
Stroke length 8.5mm, 1-8.5mm
Speed 5.5 s/mm
Specifications for Valve actuator, 24 V or 230 V supply voltage and 0...10 V or 2- point/3-point control
Protection class IP54
Ambient humidity (non-condensing) 10...95 % RH
Storage temperature -10...80 °C
Connection toward valve Standard M30 x 1.5
