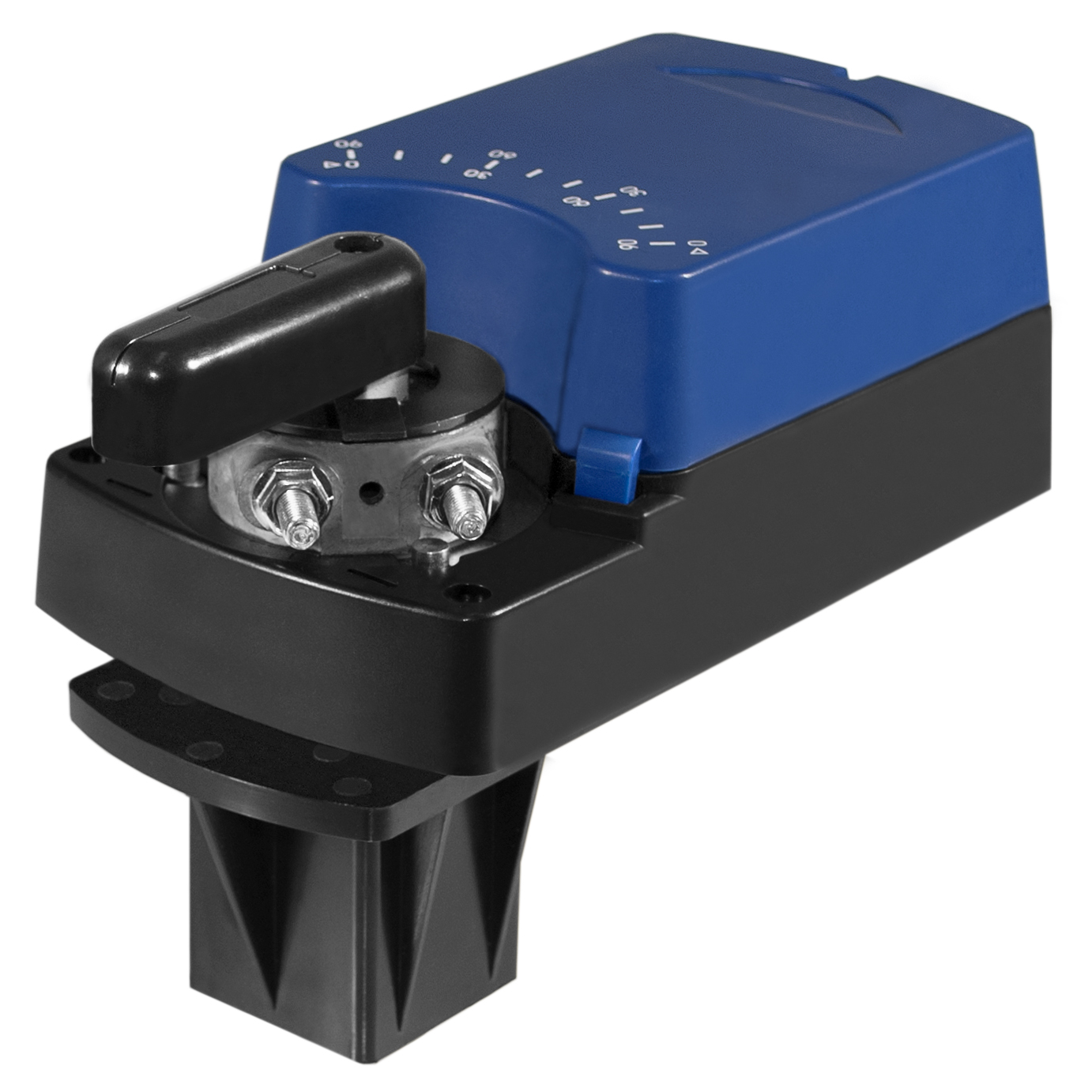

RVASN08-230
Valve actuators intended for control of Regin's pressure independent PCMTV32-50 range of valves. Compact design for simple installation and maintenance. Clear position indication and DIP-switches for setting of rotational direction.
- 96.42% Has a good to very good experience with SENSORS.NL
- Personalized customer service
- Spacious assortment with a wide range of top brands
- Need an additional discount for quantities? Please contact us
Specifications
| Supply voltage | 230 V AC |
|---|---|
| Power consumption | 4.8 W (1.2 W/6.5 VA in standby mode) |
| Torque | 8 Nm |
| Control signal | 3-point/2-point |
| Running time, actuator | 30 s |
| Protection class | IP54 |
|---|---|
| Ambient humidity (non-condensing) | 5...95 % RH |
| Storage temperature | -40...70 °C |
| Working angle, rotation | 90 ° |
| Connection toward valve | Bracket included for use with PCMTV, rotating versions (DN32 to DN50) |
