RSTF NTC 20k Room radiation temperature sensor BALDUR I

Name: RSTF NTC 20k Ruimtestralingstemperatuuropnemer BALDUR I
SKU: 041048981
Availability: PreOrder

€84,70 (€102,49 incl. VAT)

Item No. 1101-40C1-6001-000 / 110140C16001000
EAN 4 251325 603148 / 4251325603148

Productinformatie en datasheets →

Available on backorder

Waarom kopen bij Sensors.nl:

Uitstekend beoordeeld: 96.42% heeft een goede tot zeer goede ervaring
Persoonlijke klantenservice en advies
Extra korting bij grote aantallen mogelijk: Neem contact op

Add to quote

SKU: 041048981 Categories: S+S regeltechnik, Radiation Detectors

Beschrijving

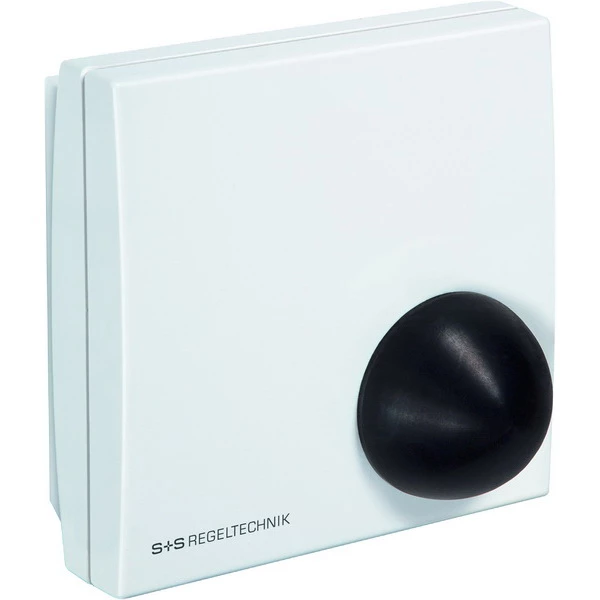

Resistance thermometer THERMASGARD~ RSTF with passive output. In design housing which has 4 mounting holes for mounting on flush-mounted boxes. Due to the measuring method used and through correct positioning in the room, a representative temperature display is achieved. The RSTF determines the effective radiant section or the effective radiant heat at the measurement point. Taking into account the heat radiation and the thermal comfort (sensation temperature), the global temperature is determined. The feeling temperature is an interplay of thermal radiation and thermal convection (the globetemperature relates to the air temperature approx. 70 % to 30 %).
