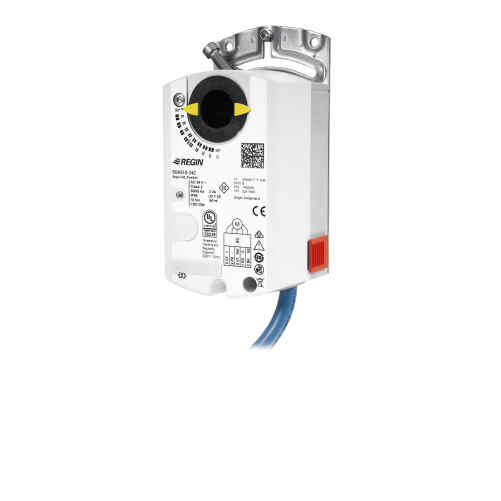

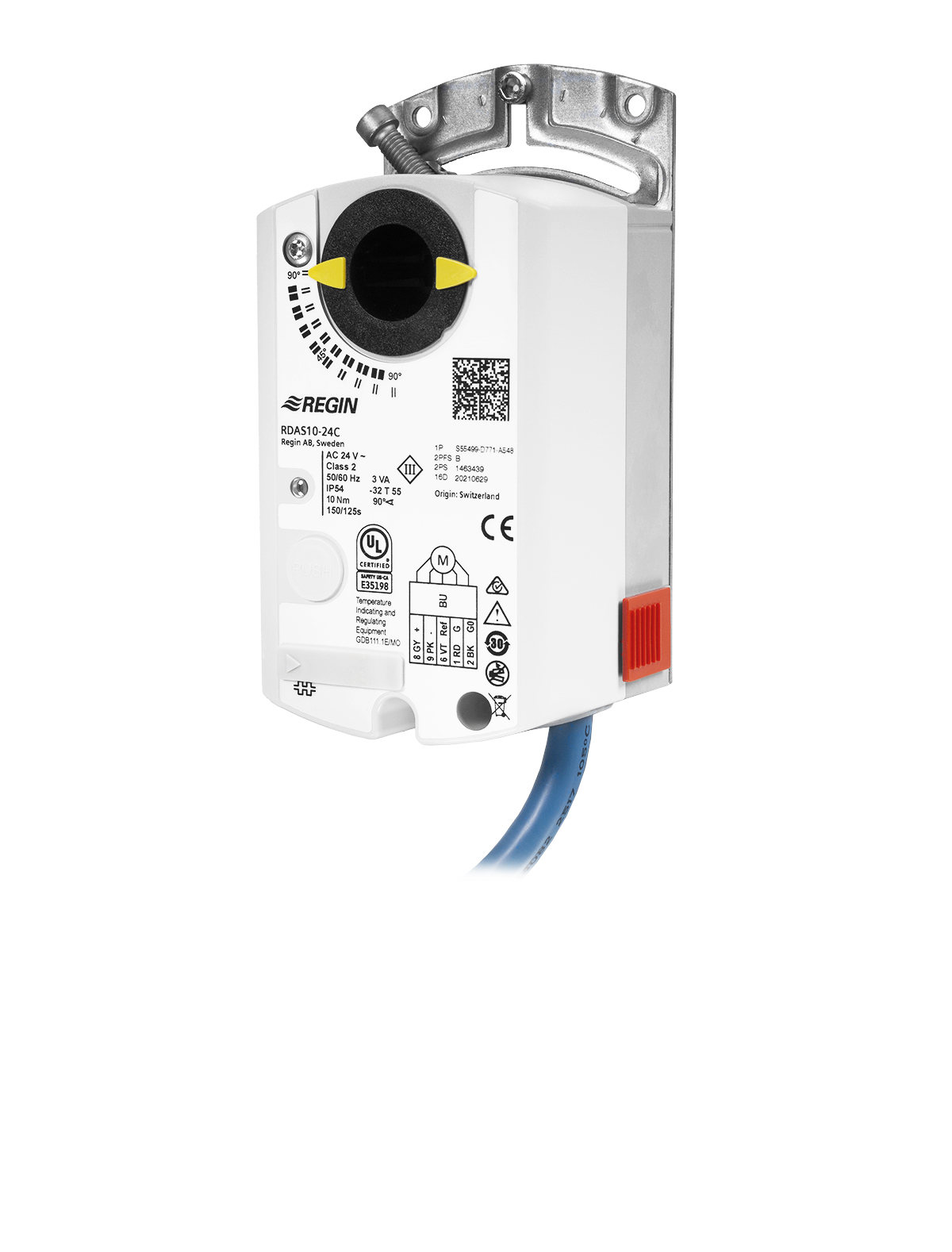

RDAS10-24C
Damper acutators with Modbus RTU communication and without spring return, 5 Nm, 10 Nm, 20 Nm, 35 Nm
- 96.42% Has a good to very good experience with SENSORS.NL
- Personalized customer service
- Spacious assortment with a wide range of top brands
- Need an additional discount for quantities? Please contact us
Specifications
| Supply voltage | 24 V AC/DC |
|---|---|
| Power consumption | 2.2 VA (1.3 W - Running / 0.5 W - Holding) |
| Cable length | 0.9 m |
| Torque | 10 Nm |
| Running time, actuator | 150 s |
| Auxiliary switch | No |
| Angle limitation | 95 ° |
| Damper shaft, round | 8...16 mm |
| Damper shaft, square | 6...12.8 mm |
| Damper shaft, min shaft length | 20 mm |
| Max damper size (area) | 1.6 m² |
| Termination RS485 | 120 Ω electronically switchable |
| Appliance class | Class III |
|---|---|
| Protection class | IP54 |
| Ambient humidity (non-condensing) | 0...95 % RH |
| Storage temperature | -32...70 °C |
| Cable nominal cross section | 0.75 mm² |
| Cable length extension, maximum | 300 m |
| Working angle, rotation | 90 ° |
