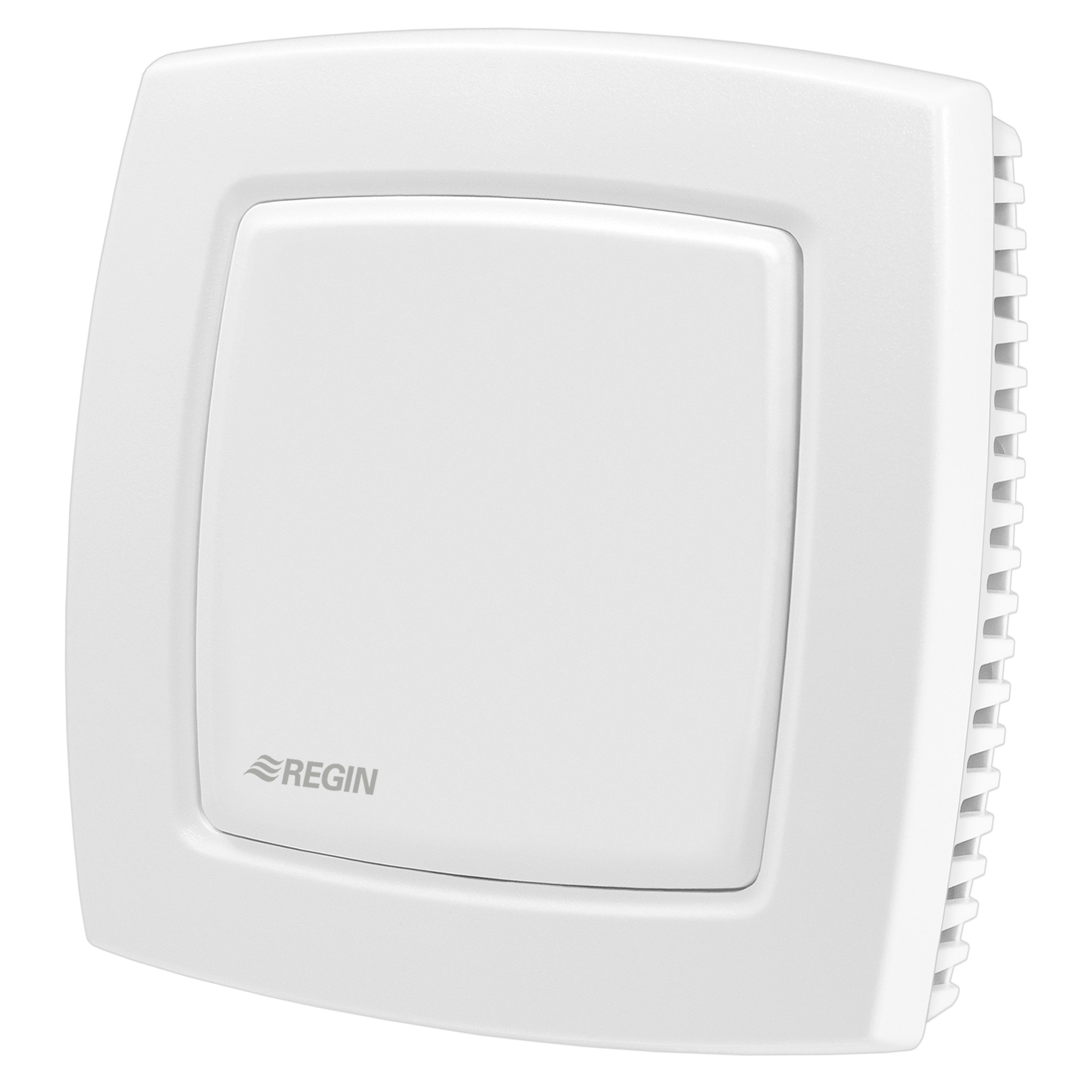

Stand-alone controllers for control of heating and cooling in a single zone or roomThe Regio Mini controllers can be configured for a specific application via the display or dipswitches (in most cases, though, the default settings can be applied). The controllers have a built-in temperature sensor. Alternatively, an external temperature sensor can be connected.RC is the basic model in the range. The other models have various functions, indicated by the letters in the product name:D = Display, F = Fan control (3-speed), H = Hidden setpoint, O = Occupancy button, T = 3-point output
- 96.42% Has a good to very good experience with SENSORS.NL
- Personalized customer service
- Spacious assortment with a wide range of top brands
- Need an additional discount for quantities? Please contact us
Specifications
| Controller Type | Room Control |
|---|---|
| Power Supply | 24V AC |
| Mounting | Wall mount |
| Display | No |
| Power Supply | 24VAC (18...30 V AC 50/60Hz / ), 2.5 VA |
| Dimensions, external (WxHxD) | 95x95x31 mm |
| AI | 1 |
| UI | 1 |
| DI | 1 |
| DI/CI | 1 |
| UO | 2 |
| DO | 1 |
| Color, cover | RAL9003 |
| Occupancy button | No |
| 3-step fan control | No |
| Setpoint knob | No |
| Hidden set point | Yes |
| Display | No |
| Protection class | IP20 |
|---|---|
| Ambient humidity (non-condensing) | 0...90 % RH |
| Storage temperature | -20...70 °C |
| Mounting | Room |
| Weight, incl. packaging | 0.11 kg |
| Analog inputs type (AI) | PT1000, 0...50°C, 0...10 V |
| Universal input type (UI). | PT1000 / DI |
| Condensation inputs type (CI) | Digital input for condensation detector KG-A/1 |
| Universal outputs type (UO) | DO 24 V AC/1A, AO 0...10 V/5mA |
| Accuracy, temperature 1 | ±0.5 °K @ 15...30 °C |
| Material, housing | Polycarbonate, PC |
