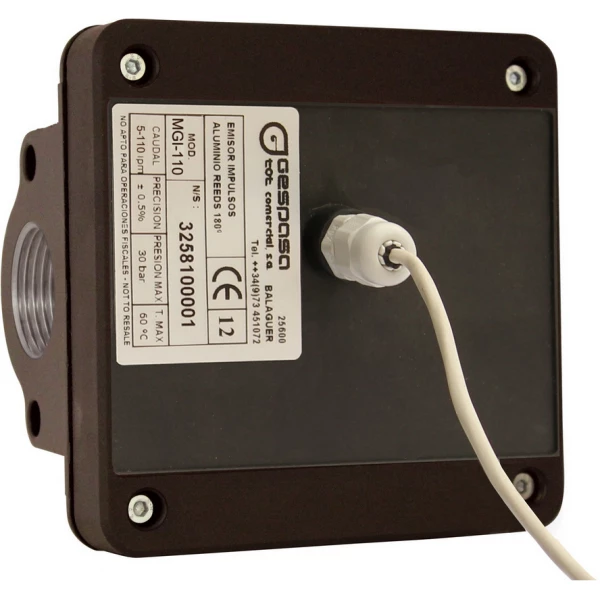

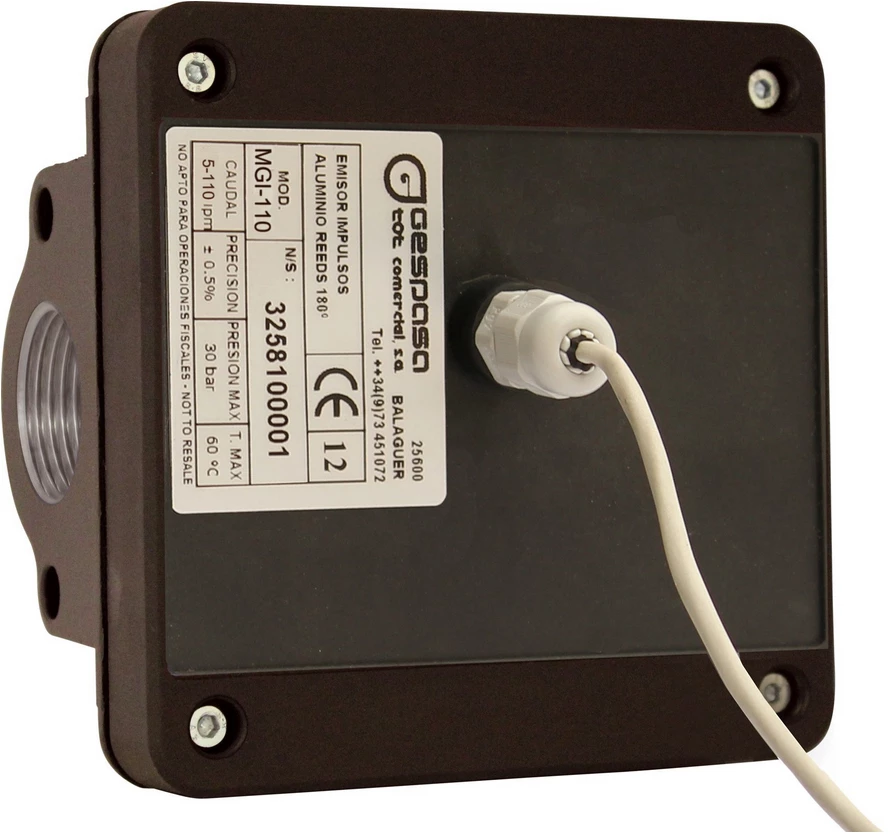

Pulse flow meter for diesel 5-110 L/min.

Name: Puls flowmeter voor diesel 5-110 L/min.
SKU: MGI-110 Pulsed output flow meter - GE32650
Availability: PreOrder

€199,95 (€241,94 incl. VAT)

Available on backorder

Waarom kopen bij Sensors.nl:

SKU: MGI-110 Pulsed output flow meter - GE32650 Categories: Bluetooth, Fuel consumption, Flow Meters, Sensors.nl

Also wirelessly send the consumption via GPRS

Technical data:

Flow (approx.):
- 5-110 l/min (diesel)
- 5-80 l/min (lubricant)
Viscosity: 2-2000 cSt
Accuracy: ±0.5 %
Max. pressure loss: 0.3 bar (diesel)
Max. pressure: 55 bar
Min./max. temperature with Reeds: -10 ºC / +90 ºC
Min./max. temperature with Hall Effect: -10 ºC / +50 ºC
Maximum Humidity: 95 H.R.
Noise level: LeqA < 70 dBA
Two channels: 41 pulses per litre and channel
Connection through thread or flange: F1″ BSP. Direct connection to the GESPASA pumps. Optional: flanges with thread of 1″
