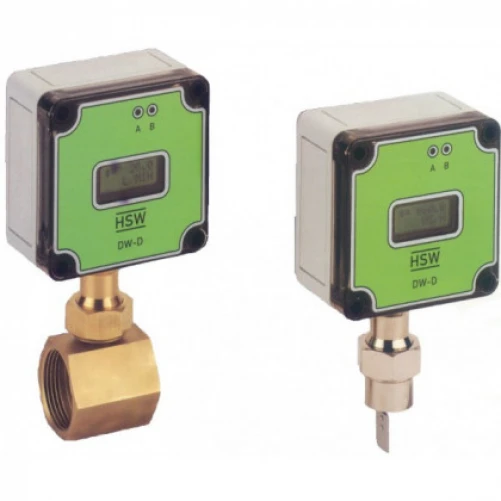

Pendulum Flowmeter DW-D for liquids

Pendulum Flowmeter DW-D for liquids

Price range: €998,52 through €1.121,36

The DW-D is a flow transmitter with a digital display of current flow rate, analog output, totalizer, voltage output, two adjustable switching relays and switching point display for monitoring limit values. It operates according to the patented HSW pendulum principle with progressive reset force.

Productinformatie en datasheets →

Process Connection

Clear

Checking current stock status? Then contact us or use the live chat.

Waarom kopen bij Sensors.nl:

Uitstekend beoordeeld: 96.42% heeft een goede tot zeer goede ervaring
Persoonlijke klantenservice en advies
Extra korting bij grote aantallen mogelijk: Neem contact op

SKU: DW-D Categories: Flow Meters, Henke Sass Wolf

Beschrijving

This item is on request!

Current consumption: 200 mA max.
Power supply: 24 V DC ± 10%
Analog output: 4-20 mA
Voltage output: 0-10 V.
Totalizator: with EEPROM memory
Display: LCD dot matrix module, 2 x 8 positions backlit
Medium temperature: -20-100 ° C (other ranges on request)
Accuracy: ± 2% from final value
Protection rating: IP 65
Measuring range: flow ratio 1:10 standard (e.g. 10-100 l / min.)
Max. pressure: 25 bar (higher values on request)
Current direction: make and break contacts: 2 x 230 V 1 A max, adjustable

Rate this product

Extra informatie

Weight	1 kg
Brand	Sensors.nl
Process Connection	R 1 1/2", R 3/8", R1 1/4", R1", R1/2", R2", R3/4"

Downloads

Product Documents

Datasheet
