Paddle flow switch Type: CM2K-025-HM, range 0.9 - 1.0 m3/h

€180,00 – €203,00

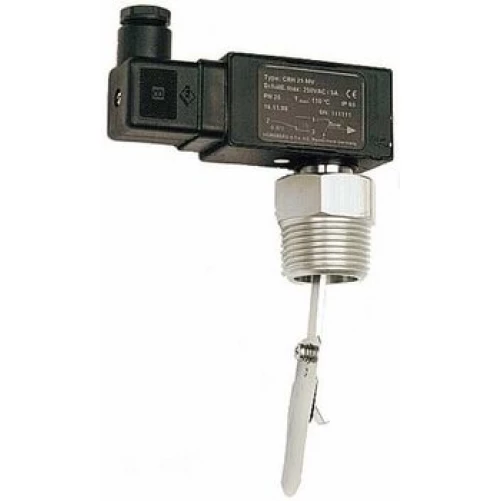

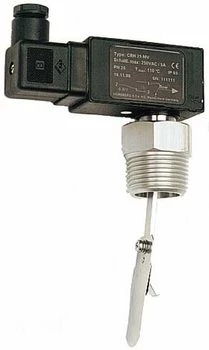

Paddle flow switch
For liquids only
Suitable for pipe sizes from DN25 to DN200
Housing: Nickel plated brass
Paddle: Stainless Steel AISI 316
Process connection 1 ″
Adjustable range of 0.9 - 1.0 m3/h
SPDT microswitch 250Vac - 5A
Max pressure 25 bar
Max. Temperature 110°C
Protection class IP65

Measuring range

Clear

Checking current stock status? Then contact us or use the live chat.

96.42% Has a good to very good experience with SENSORS.NL
Personalized customer service
Spacious assortment with a wide range of top brands
Need an additional discount for quantities? Please contact us

Add to quote

SKU: CM2K-025-HM (0.9 - 1.0 m3/h) Categories: Flow switches, Sensors.nl

Designed for flow control in pipes from DN25 to DN200. The simplicity of installation and robustness make this instrument suitable for industrial use, for air conditioning and heating. The pallet undergoes a displacement proportional to the flow associated with it, the displacement is mechanically transferred to a microswitch.

Rate this product

Weight	1 kg
Brand	Sensors.nl
Measuring range	0.9 - 1.0 m3/h H2O, 1.9 - 2.4 m3/h - H2O, 11.4 - 13.3 m3/h H2O, 13.3 - 15.3 m3/h H2O, 16.0 - 27.0 m3/h H2O, 16.5 - 18.9 m3/h H2O, 2.3 - 2.7 m3/h - H2O, 2.7 - 3.5 m3/h H2O, 2.8 - 3.4 m3/h - H2O, 26.3 - 30.3 m3/h H2O, 31.0 - 40.0 m3/h H2O, 4.8 - 5.7 m3/h H2O, 5.4 - 6.7 m3/h H2O, 55.0 - 71.0 m3/h H2O, 6.5 - 7.5 m3/h H2O, 6.7 - 8.4 m3/h H2O, 7.6 - 8.9 m3/h H2O, 8.6 - 15.0 m3/h H2O

Paddle flow switch Type: CM2K-025-HM, range 0.9 - 1.0 m3/h
