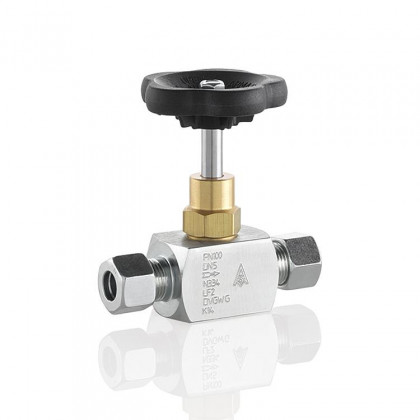

Needle Valves for Gas Service Types N334

AS-Schneider Needle Valve types N334 is designed for Gas Service. This valve types is providing, as standard, internal stem thread, an integral valve seat and a non-rotating needle tip. The valve is provided with a Double-O-Ring Stem Sealing and is DVGW approved:

Basis of types examination: DVGW VP 308
For all gases acc. to DVGW G260
DVGW Registration-No.: DG-4315BP0209
Bore Size: 0.197″ (5 mm)
Pressure-Temperature Rating: Max. 100 bar @ -20°C up to +60°C

Weight	1 kg
Material	Carbon Steel, galvanized
Types	12L, 12S
Brand	AS-Schneider
