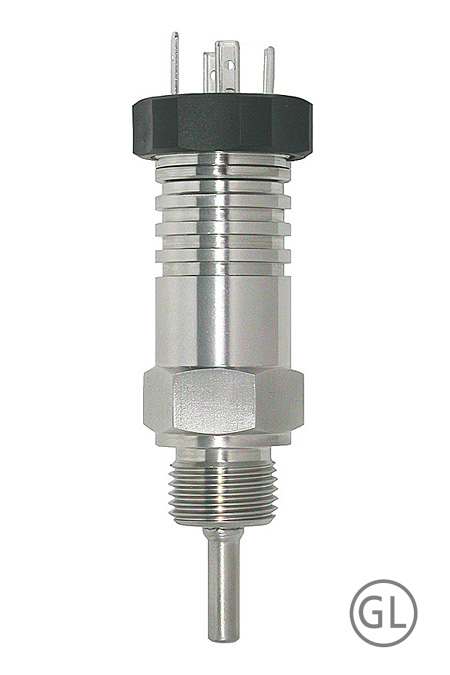

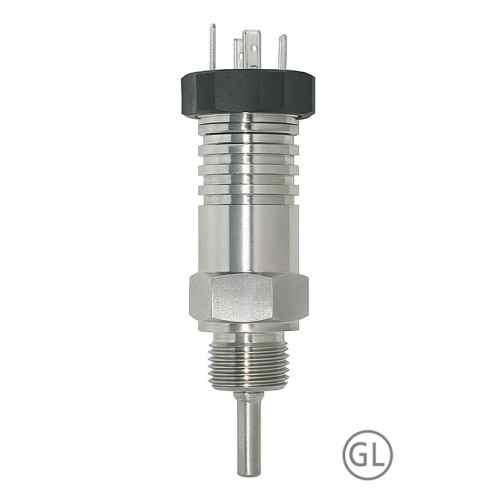

Müller Modular compact temperature sensor with GL approval

Müller Modular compact temperature sensor with GL approval

Price range: €142,44 through €251,85

Productinformatie en datasheets →

Output

Process Connection

Tube length (mm)

Electrical connection

Nutrition

Range (°C)

Clear

Checking current stock status? Then contact us or use the live chat.

Waarom kopen bij Sensors.nl:

Uitstekend beoordeeld: 96.42% heeft een goede tot zeer goede ervaring
Persoonlijke klantenservice en advies
Extra korting bij grote aantallen mogelijk: Neem contact op

SKU: N/B Categories: Plug-in passive, Müller IE, Recorders active, Recorders passive Tags: compact pt100, mkts sensor, temperature sensor mkts, temperature sensor mkts, temperature transmitter with ship approval, tempratuuropter mkb, update2026

Beschrijving

Technical features:

Measuring element as Pt 100, Pt 1000, 2-, 3-, 4-wire
Inside of case completely potted
Protection tube and case are made of stainless steel 1.4571
Process terminal thread 1/4″, 3/8″, 1/2″, 3/4″, 1/4″ NPT, 3/8″ NPT, 1/2″ NPT
optional transmitter 4...20 mA, programmable
Cable connection with plug MIL D38999, valve plug DIN EN 175301-803,
RSE4 compatible plug M12x1, cable entry M12x1,5 with cable
Degree of protection IP 67

5/5 - (1 stemmen)

Extra informatie

Weight	1 kg
Brand	Müller IE
Output	4 ... 20 mA, Pt100 3-wire
Process Connection	G1/2", G1/4", G3/4", G3/8"
Tube length (mm)	100, 110, 150, 200, 400, 50, 65, 85
Electrical connection	DIN EN175301-803-A, Cable 2 mtr. teflon silicone, M12x1, 4-pole
Nutrition	10 ... 35 V DC
Range (°C)	-20 ... +120, -40 ... +125, 0 ... +60, 0 ... 100, 0 ... 120, 0 ... 150, Other range
