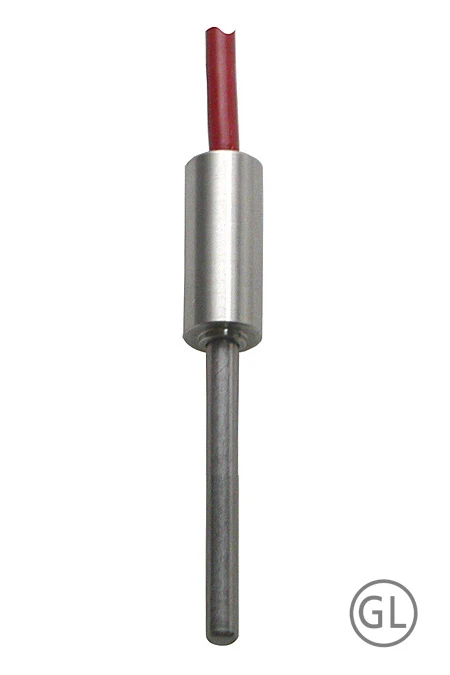

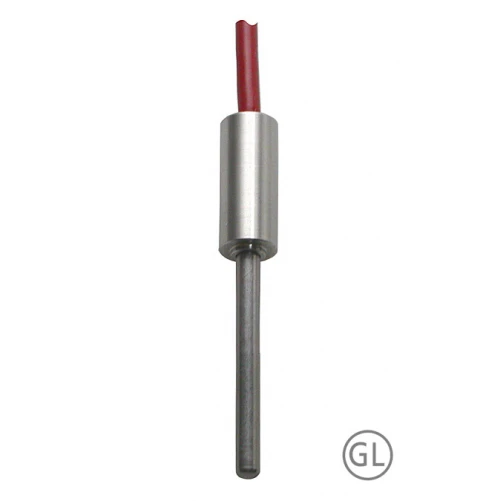

Müller Cable resistance thermometer with sleeve socket and GL approval

technical features

• Sensor RTD: 1x PT100 / 1x Pt1000 / 2x Pt100 / 2x Pt1000 (2-, 3-, 4-wire)
• Accuracy: class A / class B / B1/2DIN / B1/3DIN / B1/10DIN
• Protective sheathing: stainless steel 1.4571, diameter: 4 / 5 / 6 mm
• Nominal length: 25 (d=4) / 45 (d=4, d=5) / 41 (d=6) / 65 (d=6) mm
• Option: other length
• Cable length: 2000 mm / Option: other length
• Cable: PVC-PVC / PTFE-silicone / PTFE-PTFE / PTFE-braiding-PTFE, Fibreglass-Fibreglass-stainless steel braiding
• Antikink: heat shrinkable sleeve / spring / without
• Connection: open ends
