Name: MTIR30-2
SKU: MTIR30-2
Availability: InStock

MTIR30-2

€178,00 (€215,38 incl. VAT)

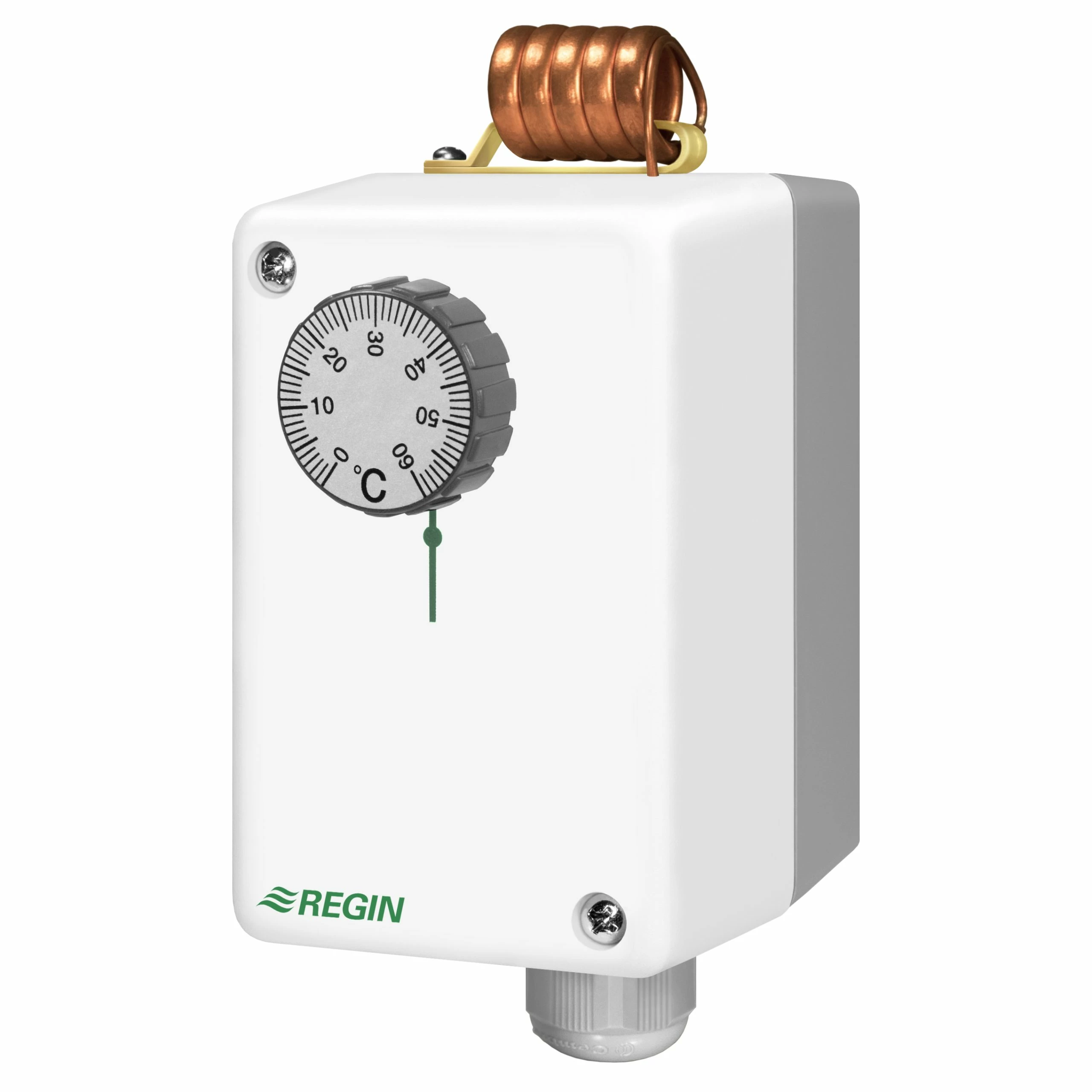

High quality thermostats for use in cooling, heating and ventilation systems.

96.42% Has a good to very good experience with SENSORS.NL

Personalized customer service

Spacious assortment with a wide range of top brands

Need an additional discount for quantities? Please contact us

SKU: MTIR30-2 Category: Switches Tag: Switches

Specifications

Specifications for MTIR30-2
Sensor element	Liquid-filled copper capillary
Max probe temperature	65 °C
Electrical contact	SPDT microswitch
Switching capacity	15 (8) A, 24...250 V AC
Setpoint value, temperature range	-30...30 °C
Step function	2
Hysteresis, temperature	1 K
Step differential	2...5 K
Reset function	Automatic
Setpoint adjustment	External
Dimensions, external (WxHxD)	70x88x108 mm

Specifications for Wall thermostat, IP65
Appliance class	Class I
Protection class	IP65
Ambient humidity (non-condensing)	10...90 % RH
Storage temperature	-40...65 °C
Storage humidity	10...95 % RH
Weight, incl. packaging	0.45 kg
Material, cover	ABS
Material, base	PC+ABS blend (Bayblend®)
