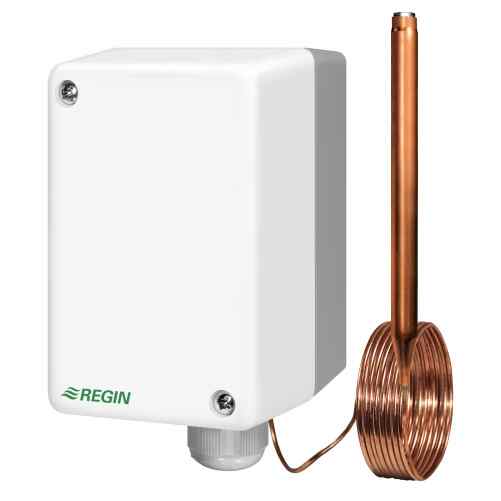

Name: MTIC30SH
SKU: MTIC30SH
Availability: InStock

MTIC30SH

€155,00 (€187,55 incl. VAT)

High quality thermostats for use in cooling, heating and ventilation systems.

96.42% Has a good to very good experience with SENSORS.NL

Personalized customer service

Spacious assortment with a wide range of top brands

Need an additional discount for quantities? Please contact us

SKU: MTIC30SH Category: Switches Tag: Switches

Specifications

Specifications for MTIC30SH
Sensor element	Liquid-filled copper capillary
Probe diameter	Ø 9.5 mm
Probe length	1.5 m
Max probe temperature	60 °C
Electrical contact	SPDT microswitch
Switching capacity	15 (8) A, 24...250 V AC
Setpoint value, temperature range	-30...30 °C
Step function	1
Hysteresis, temperature	2...20 K
Reset function	Automatic
Setpoint adjustment	Internal
Suitable immersion well	DR-01/02
Dimensions, external (WxHxD)	70x72x108 mm

Specifications for Capillary thermostat, IP65
Appliance class	Class I
Protection class	IP65
Ambient humidity (non-condensing)	10...90 % RH
Storage temperature	-40...70 °C
Storage humidity	10...95 % RH
Weight, incl. packaging	0.4 kg
Material, cover	ABS
Material, base	PC+ABS blend (Bayblend®)
