IRON PUMP SELF SUCTION SELF PRIMING -50 Ex 230V AC, 12V & 24V DC models available

IRON PUMP SELF SUCTION SELF PRIMING -50 Ex 230V AC, 12V & 24V DC models available

€669,00

Productinformatie en datasheets →

Options

Clear

Checking current stock status? Then contact us or use the live chat.

Waarom kopen bij Sensors.nl:

Uitstekend beoordeeld: 96.42% heeft een goede tot zeer goede ervaring
Persoonlijke klantenservice en advies
Extra korting bij grote aantallen mogelijk: Neem contact op

SKU: 10035-CF00000 Categories: Diesel Pumps, Gespasa Tag: Diesel Pumps

Beschrijving

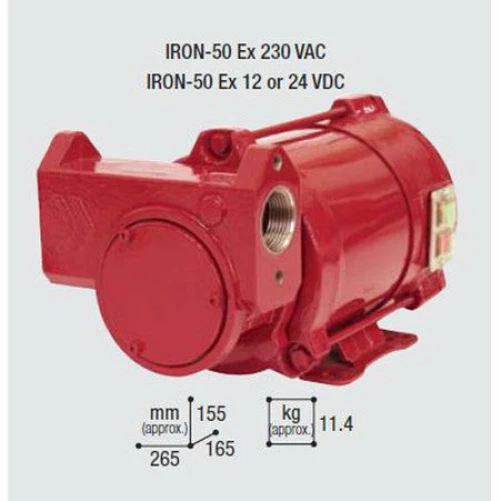

Gespasa IRON-50 Diesel Pump 230v AC

Features:

Self-suction - self-priming. Eccentric self-adjusting blades
Recirculation bypass
Suction: Max 2.7 m - Delivery: Max 30 m
Priming pipe suction: 5 m
Free flow: 50 l/min
Consumption: 1-1.8 A (230 VAC) / 20-27 A (12 VDC) - 10-14 A (24 VDC) A
2,850 rpm (230 VAC) / 3,000 rpm (12 or 24 VDC)
Motor: 0.18 kW 230 VAC - 50 Hz single-phase / 12 or 24 VDC - EExd
with thermal protector - IP55
S1 Continuous Duty
Motor zone classifi cation: II 2G Ex dc IIB T4 - Certifi cate LOM 15ATEX0124
Bypass pressure: 2-2.5 bar
Connection through F1″ (BSP) threads and flanges
Built in steel filter of 350 µm (micron).
ON/OFF luminous switch
3 m cable
Anti-rust treatment

Rate this product

Extra informatie

Options	12 Volt DC Iron 50 Ex Rated Pump, 230 Volt AC Iron 50 Ex Rated Pump, 24 Volt DC Iron 50 Ex Rated Pump
Product type:	Fuel Transfer Pump
Vendor:	Gespasa Shop - International Fuel Equipment and Services
Voltage:	12 Volt DC Iron 50 Ex Rated Pump, 230 Volt AC Iron 50 Ex Rated Pump, 24 Volt DC Iron 50 Ex Rated Pump
Product sku:	10035-CF00000
Weight:	9.35 kg
