Adjustable pressure switch type PF243.10.BR.HN.0.14
€28,50 (€34,49 incl. VAT)
- Range: 1.5...10 bar
- Contact: N.O
- P. max.: 350 bar
- IP54 Cover not included
- Minimum of 5 pieces per order!
Available on backorder
Waarom kopen bij Sensors.nl:- Uitstekend beoordeeld: 96.42% heeft een goede tot zeer goede ervaring
- Persoonlijke klantenservice en advies
- Extra korting bij grote aantallen mogelijk: Neem contact op
Beschrijving

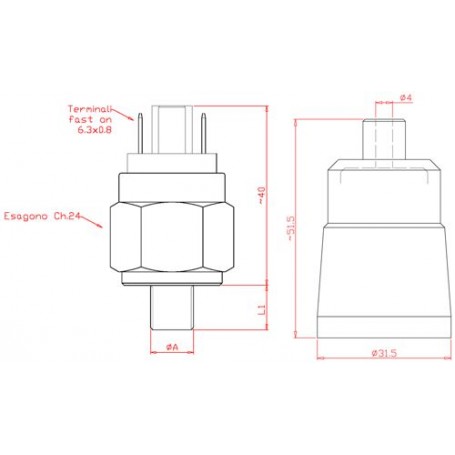

Electromechanically adjustable low voltage pressure switch (max. 48 volts 0.5 A), normally open or normally closed contacts, electrical connection to faston 6.3 x 0.8 IP00. Key hexagonal housing 24. IP54 electrical protection with CP54 protective cover is supplied separately. Threaded process connections.
Extra informatie
| Pressure range (Bar) | 0,1..1, 0,2..2, 1,5..10, 15..50, 40..300, 40..80, 9..20 |
|---|---|
| Overpressure max. | 600, 300 |
| Max supply | 48 V |
| Brand | Sensors.nl |
Downloads
Product Documents
