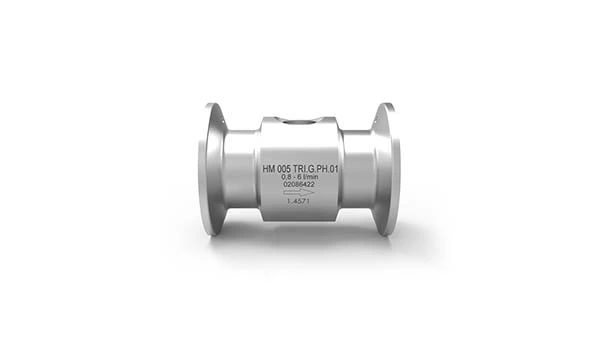

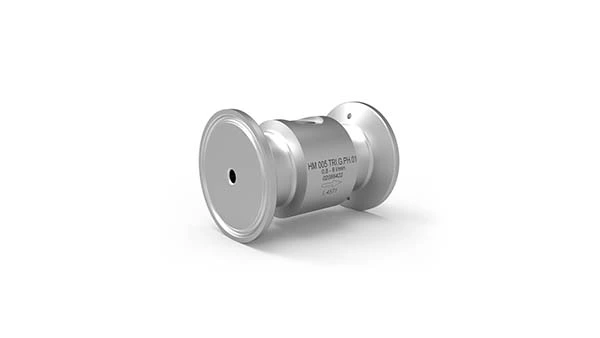

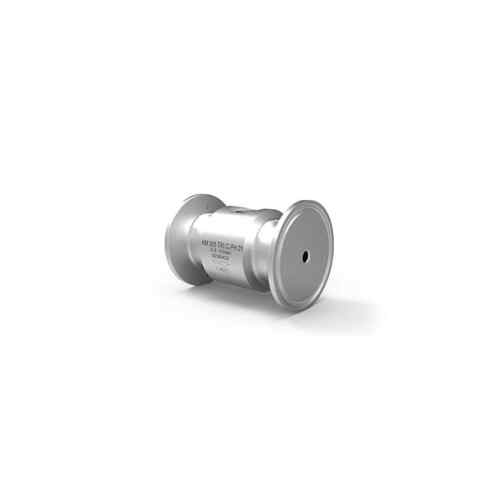

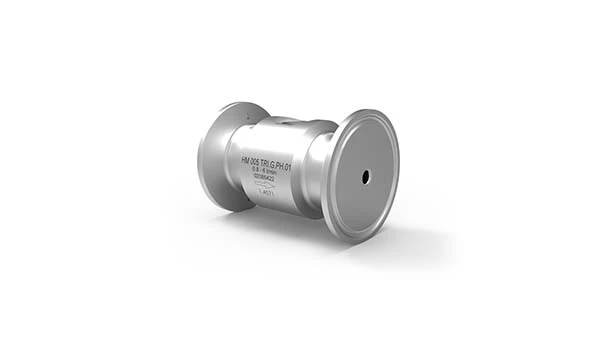

HM 005 TRI - Turbine Flow Meters for Pharmaceutical Applications.
The HM TRI turbine flowmeter series (TRI for Tri-Clamp connectors) is used for measuring continuous and discontinuous flow rates. Mainly used in the pharmaceutical and food industries. The innovative dead space-free construction and special flush bores in the bearing make flushing very easy.
- Uitstekend beoordeeld: 96.42% heeft een goede tot zeer goede ervaring
- Persoonlijke klantenservice en advies
- Extra korting bij grote aantallen mogelijk: Neem contact op
Beschrijving
The HM TRI turbine flowmeter series (TRI for Tri-Clamp connectors) is used for measuring continuous and discontinuous flow rates. Mainly used in the pharmaceutical and food industries. The innovative dead space-free construction and special flush bores in the bearing make flushing very easy.
Measuring Ranges0.8 up to 6 l/min
Repeatability±0.05 % (under the same conditions)
Linearity±1 % of actual flow (viscosity 1 mm²/s)
Viscosity Range1 mm²/s
Materials
- Housing: as per DIN 1.4404 [AISI 316 L]
- Wheels: axle per DIN 1.4460 [AISI 329].
- Bearing: PTFE
Pressureup to 16 bar [232 psi]
Medium Temperature-40 °C up to +150 °C [-40 °F up to +302 °F].
