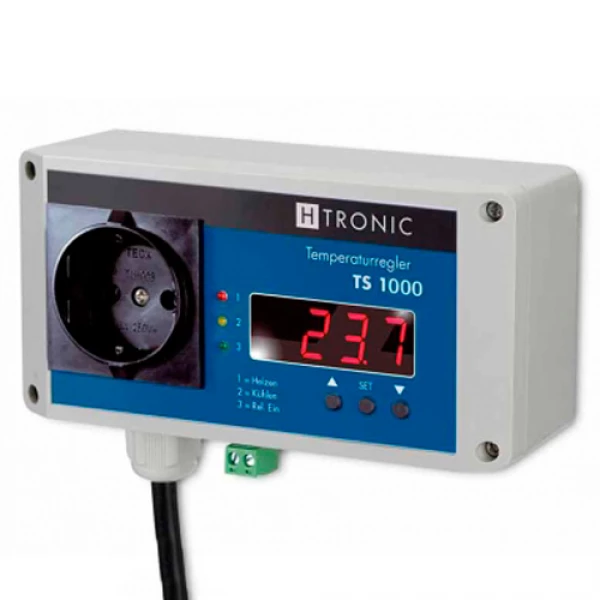

H-Tronic Temperature Switch TS 1000 (without PT1000 sensor)

€55,11 (€66,68 incl. VAT)

For wall mounting
Temperature sensor PT1000 (not included)
Switching temperature freely adjustable from -99... +850 ° C
Min./Max. Display
Serial interface for reading the measurement data (optional)
Operation and surveillance-free operation
Sensor short circuit and sensor interruption are recognized immediately
Output turns off on sensor error
Adjustable to heating or cooling
LED indicators for relay on, heating (red) , Cooling (yellow)
data retention in the event of a power outage
For probes, see H-Tronic accessories

Waarom kopen bij Sensors.nl:

Uitstekend beoordeeld: 96.42% heeft een goede tot zeer goede ervaring
Persoonlijke klantenservice en advies
Extra korting bij grote aantallen mogelijk: Neem contact op

Add to quote

SKU: TS1000 Categories: H-Tronic, Temperature, Temperature Controls

Beschrijving

The TS 1000 temperature controller is ideal for all application areas where temperature control in heating or cooling operation is required. An external temperature sensor records measurement ranges from -99 to + 850 ° C.

Technical Specifications:

Operating voltage: 230 VAC
Output voltage: 230 VAC, 16A max.
Power consumption: approx. 2 VA
Switching capacity: max. 3000 W
Measuring input: PT1000 (2-wire)
Accuracy: <0.5% FS ± 0.1 ° C
Resolution: 0.1 ° C
Protection rating: IP 20
Remote measurement up to 50 meters
Ambient temperature of the device: - 15 to + 50 ° C
Dimensions: (L x W x H): 160 x 80 x 60 mm
Scope of delivery: without sensor
