Gauge Valves - Straight Pipes and 90° Elbows

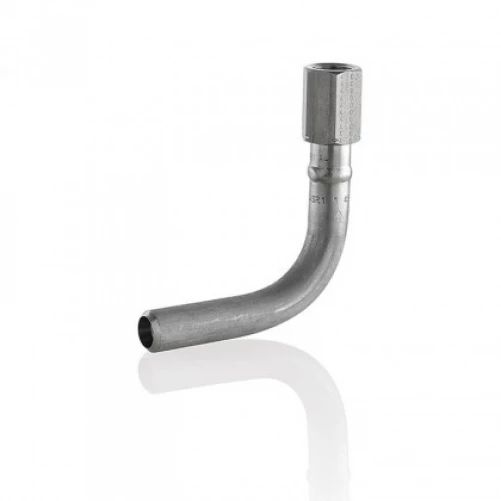

AS-Schneider Staright Pipes and 90° Elbows are used when gauge syphons are not necessary due to the service conditions. The Straight Pipe is used for vertical installations. The 90° Elbow is used for horizontal installations.

The standard pipe dimension is Ø 20 x 2.6 mm. 1/2″ pipe (Ø 21.3 mm) dimensions are also available.

Weight	1 kg
Material	1.0345, 1.4571
Types	6 / 1/2 NPT, 6 / G 1/2, Ø 20 x 2
Brand	AS-Schneider
