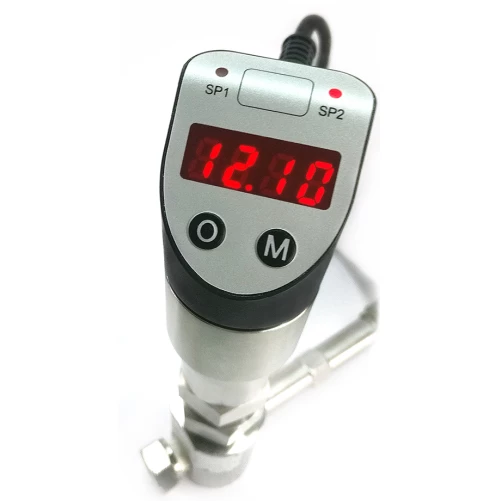

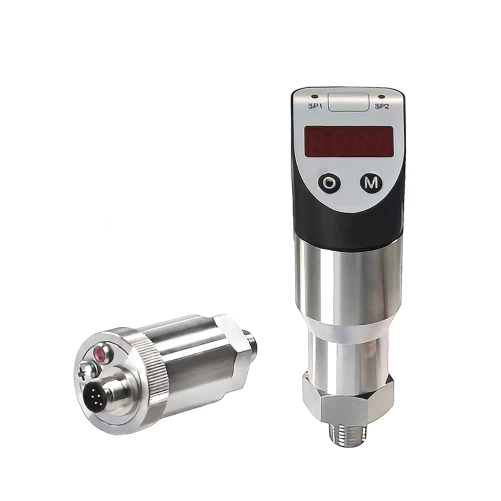

Electronic Pressure Switch and Transmitter | SRS-CS-PT623

The SRS-CS-PT623 is an intelligent pressure transmitter that combines pressure measurement, local display and control. The device uses an advanced ARM industrial MCU as its core and a high-quality pressure sensor as its measurement element. With its well-engineered and tuned design, the SRS-CS-PT623 responds quickly and has good electromagnetic compatibility for pressure control while maintaining accuracy. It can be widely used for pressure control in industrial locations in pumps, hydraulic and pneumatic equipment, among others. The SRS-CS-PT623 can visually display the process pressure and switch contact status through the switch output, analog output and display. It provides various output signals for different applications. The OLED display is very clearly readable.

Applications:

• Hydraulics
• Industrial Automation
• Cooling units
• Generators
• Compressors
• Heating systems
• Water Management



Weight	1 kg
Pressure range (Bar)	0 … 10, 0 … 100, 0 … 250, 0 … 40, 0 … 400, 0 … 6
Output	4 ... 20 mA
Process Connection	G1/4" BSP external
Electrical connection	M12x1, 5 pole
