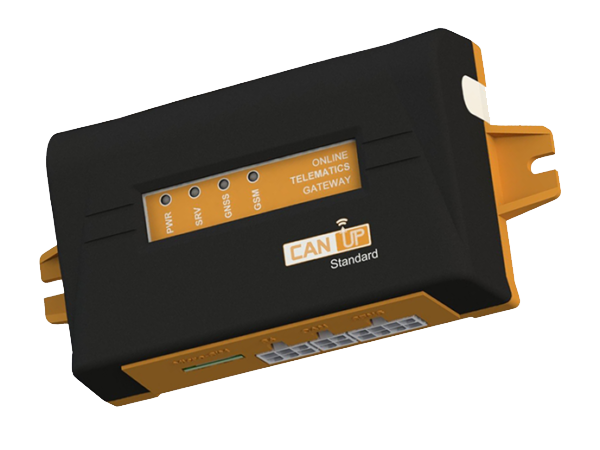

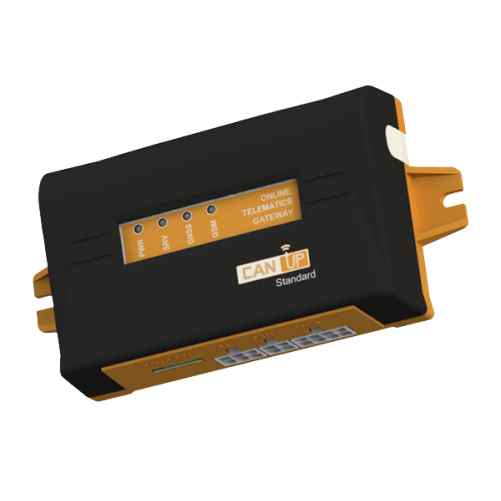

Edge computing telematics gateway Pro LTE E (4G network)

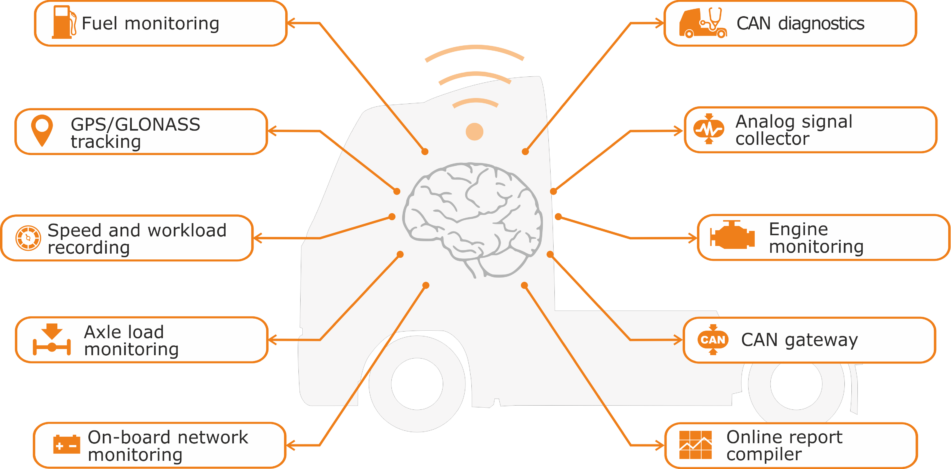

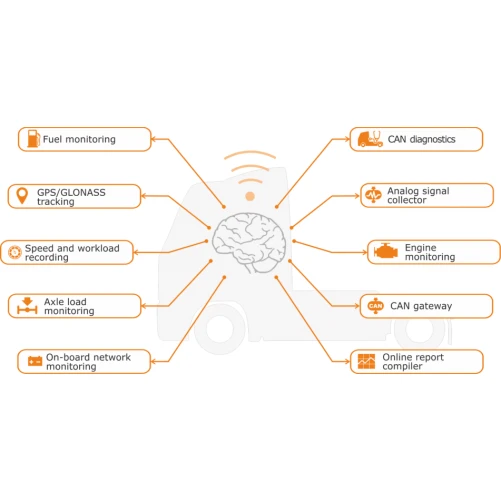

CANUp telematics gateway combines functionality of vehicle data interface, digital-to-analog converter and online GPS GLONASS tracking device. It uses edge computing algorithms for onboard telematics data processing and analysis. That means the CANUp telematics gateway analyzes raw data before sending it to the online telematics platform. Data analysis is performed using IoT Citizen Technology and includes:

• read data from standard CAN bus of vehicle, ISOBUS of agricultural machinery
• smart measurement of analog signals,
• Standardization of different types of signals,
• detection of rapid events - e.g. oil pressure drop, voltage jump,
• Onboard generation of reports - regular or event-based.

Edge computing telematics gateway provides the ability to compile reports from more than 10800+ vehicle operating parameters. CANUp receives data from various additional monitoring devices - fuel level sensors, fuel flow meters, FMS readers, axle load sensors, etc. The gateway is used as a terminal unit in vehicle tracking systems and stationary object monitoring systems - construction and agricultural vehicles, railroad machinery, vessels, diesel generator stations.
