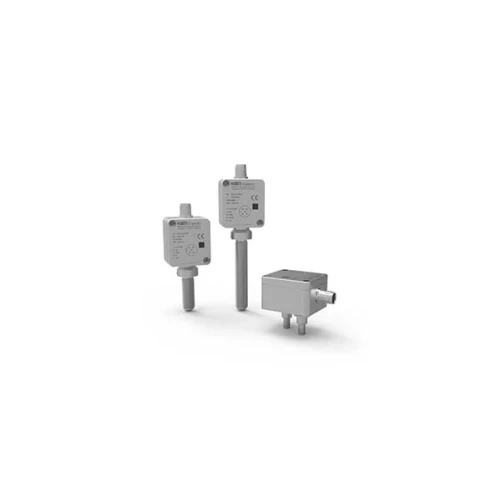

ECO1 Pulse Amplifiers - single pickup - screwing in for all KEM flow meters
Our ECO pulse amplifiers can be equipped with all KEM volume meters. The amplifier system includes a single tap with a temperature range up to +150 °C and a double tap for higher resolutions or bidirectional flow measurement with standardized push-pull output stage.
- Uitstekend beoordeeld: 96.42% heeft een goede tot zeer goede ervaring
- Persoonlijke klantenservice en advies
- Extra korting bij grote aantallen mogelijk: Neem contact op
Beschrijving
Features & Benefits
Compact Design for volume meters
Medium temperatures up to +150 °C [+302 °F].
Frequency doubling
Detection of the flow direction
EMC Directive 2014/30/EU compliant
Functions & Specifications
Supply Voltage+12 up to 27 V DC, regulated
Quiescent Current< 20 mA
Frequency Range1 up to 5,000 Hz
Ambient Temperature-40 °C up to +60 °C [-40 °F up to +140 °F].
Medium Temperature-40 °C up to +150 °C [-40 °F up to +302 °F], depending on version
Output Signal1:1-frequency or direction signal & double frequency
Ingress ProtectionIP 65
